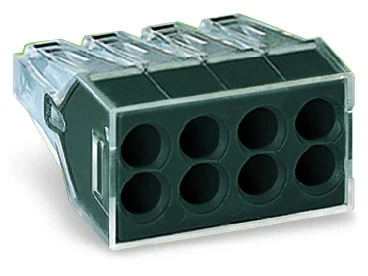

Wago Connect Pushwire 8 Conductor 24A 400V 4Kv 2.5mm Clear/Grey
£22.44 Incl. VAT
The 773 series from Wago is a PUSH WIRE connector providing instant connection for junction boxes. A secure connection is made visible through the transparent housing. The connector can be reused and wires easily removed. The connector encapsulates the connections and provides protection to IP2X and is safe to touch. · · · Wire range 2.5 mm to 6 mm · · Transparent housing · · IP2X protection rating · · Test point at base
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Push in terminal Colour Colourless Nominal voltage 400 V Nominal current 24 A Conductor cross section solid (solid, stranded) 0.75 – 2.5 mm² Transparent Yes Suitable for flexible core No Suitable for multi-wire core Yes · Technical Data Sheet – Click to Download
