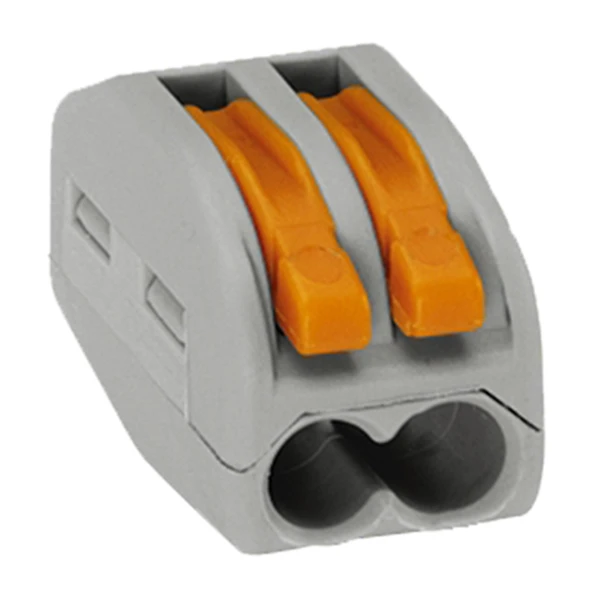

Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey
Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey
Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey - Image 2
Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey - Image 3
Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey - Image 4

Wago Connector 2 Conductor Levers 32A 400V 4Kv 4mm Grey

£20.00 Incl. VAT

Splicing connectors are clips typically made from plastic to make connections with two or more pieces of wire. This makes the job easier because you do not need to solder the wires together in order to have a connection. · · · 400V rated · · 4kV impulse rated · · 4kV impulse rated · · Lever actuation · · Solid/Stranded conductor: 0.08 – 2.5 mm² / 28 – 12 AWG

100 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 222-412 Categories: , , Brand: Part Number: 2500590761

Description

Technical Specifications  Technical Specifications Push in terminal Number of clamp positions 2 Nominal voltage 400 V Nominal current 32 A Conductor cross section flexible (fine-strand) with cable end sleeve 0.08 – 4 mm² Conductor cross section solid (solid, stranded) 0.08 – 2.5 mm² AWG-range 12 – 28 Nominal cross section 0.8 – 4 mm² With operation lever Yes Transparent No Suitable for solid core Yes Suitable for multi-wire core Yes Suitable for flexible core Yes · Technical Data Sheet – Click to Download
