Wago Isolation Amplifier Current And Voltage Input Signal 2 X Current Output Signal Supply Voltage: 24 Vdc 6 Mm Module Width 2,50 Mm²

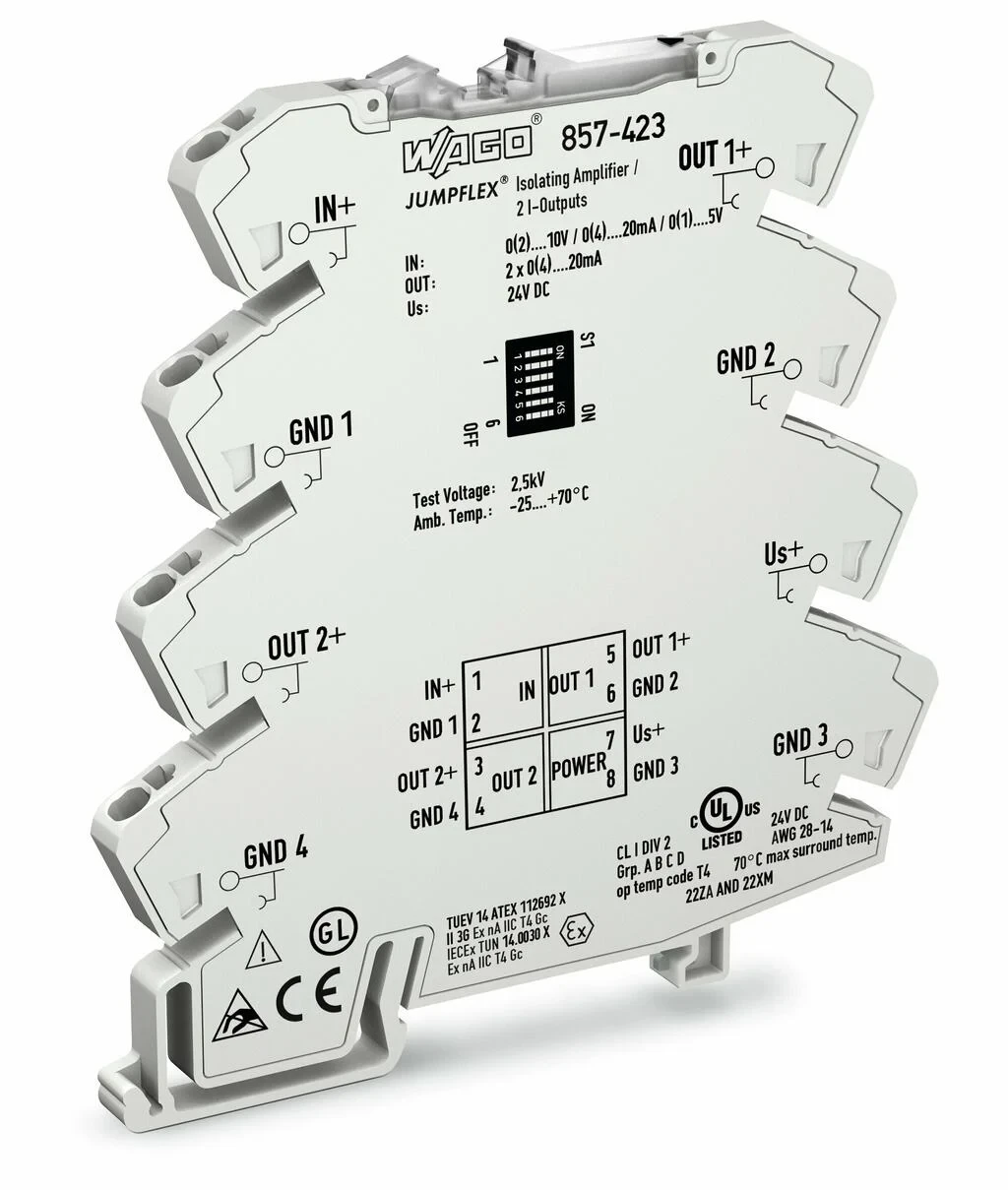

The 857-423 WAGO is a 2-channel, isolated signal amplifier module. It can be used to amplify, filter, and isolate standard analog signals. The 857-423 WAGO has two configurable current outputs, which can be set to 0-20 mA or 4-20 mA. It also has a switchable limit frequency, which can be set to 100 Hz or 1 kHz. The 857-423 WAGO is a compact and easy-to-use device that can be mounted on a DIN rail. · · · 2-channel, isolated signal amplifier module · · Can be used to amplify, filter, and isolate standard analog signals · · Two configurable current outputs (0-20 mA or 4-20 mA) · · Switchable limit frequency (100 Hz or 1 kHz) · · Weight: 2.26g · · Depth: 18mm
