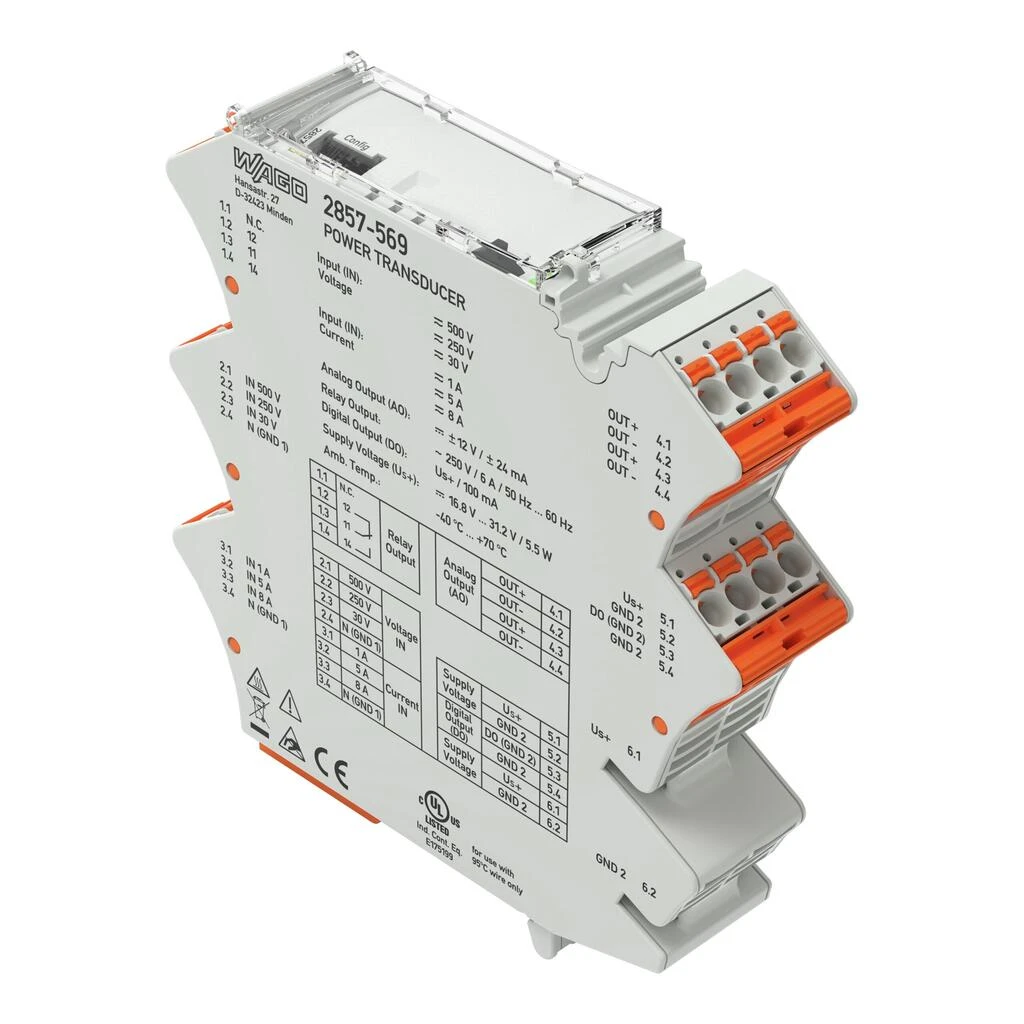

Wago Single-Phase Power Signal Conditioner Current And Voltage Input Signal Current And Voltage Output Signal Digital Output Configuration Via Software Supply Voltage: 24 Vdc

WAGO’s 1-phase power measurement module monitors and reports signal states with up to two switching thresholds. The sensor and status information that is collected is also converted to a standard analog signal. Current, voltage, effective power, apparent power or reactive power can be selected as the measured variable.Additionally, both frequency and phase angle are displayed. · · · A relay with changeover contact reacts to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values). · · Adjustable software filter · · Simulation of input/output response via WAGO Interface Configuration Display · · Analog unipolar/bipolar signals (current/voltage) at output · · Coil voltage: 24V DC · · Weight: 480g · · AC1 Rating: 45A · · Depth: 138mm · · Normal State Configuration: 1NO (Auxiliary)
