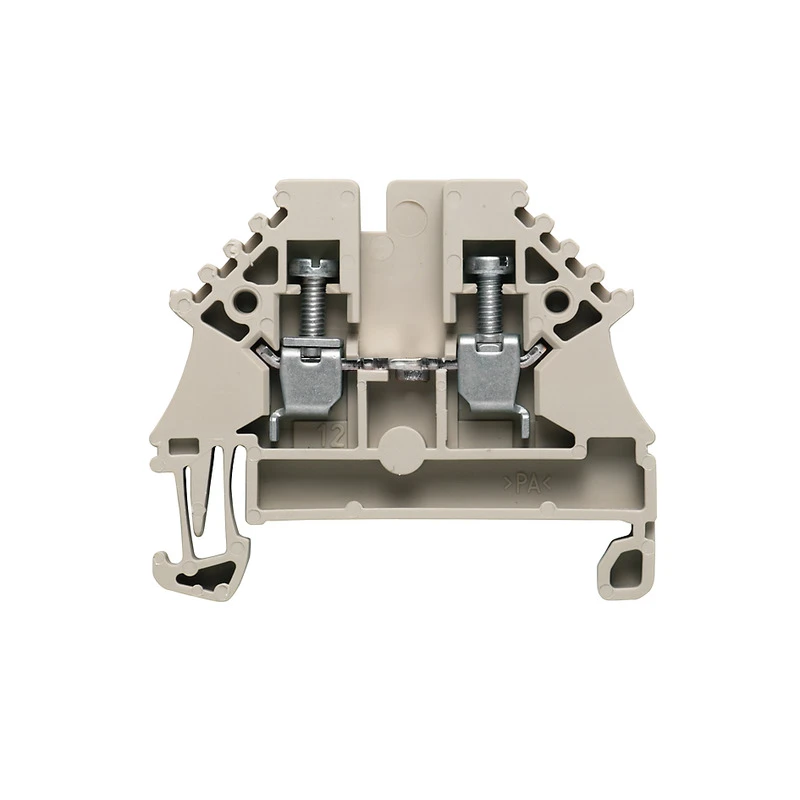

WDU 500V 24A Feed-Through Terminal Block 44 x 5.1 x 37mm Dark Beige

Description

Technical Specifications  Technical Specifications Feed-through terminal block Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Connection position Sideways Type of electrical connection 1 Screw connection Colour Beige Type of electrical connection 2 Screw connection Rated current In 24 A Rated voltage 500 V Width/grid dimension 5.1 mm Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 120 °C Width 5.1 mm Length 44 mm Number of clamp positions per level 2 Height at lowest possible mounting height 37.5 mm Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
