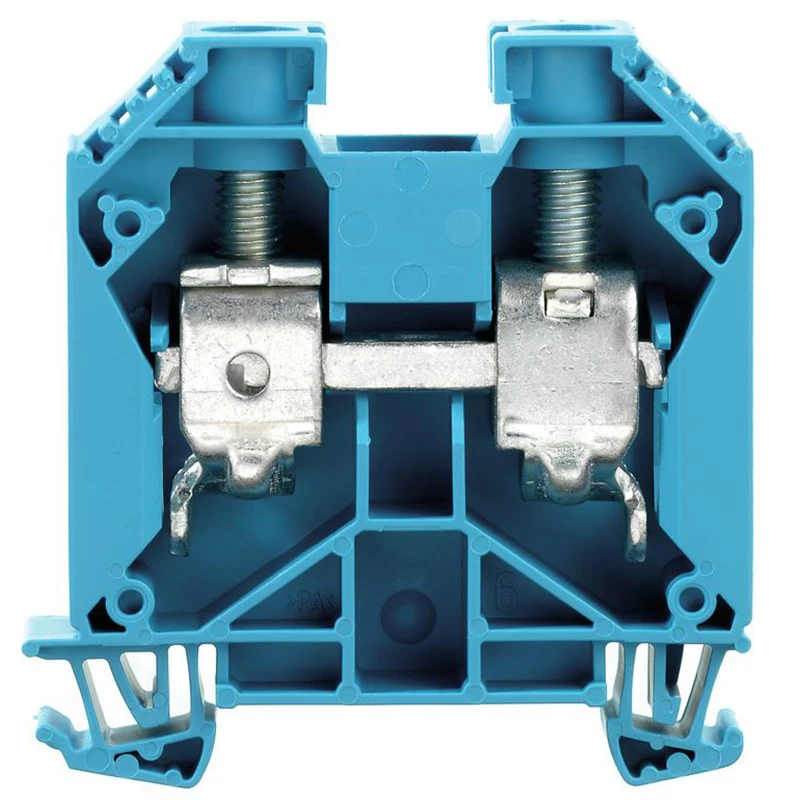

Weidmuller 35mm² Feed-Through Terminal Block 125A 12-2AWG Blue

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 1000 V Rated current In 125 A Number of levels 1 Number of clamp positions per level 2 Connectable conductor cross section solid-core 2.5 – 16 mm² Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 2.5 – 35 mm² Connectable conductor cross section fine-strand without cable end sleeve 2.5 – 35 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Internally connected stages No Closing plate required Yes Explosion-tested version ‘Ex e’ Yes · Technical Data Sheet – Click to Download
