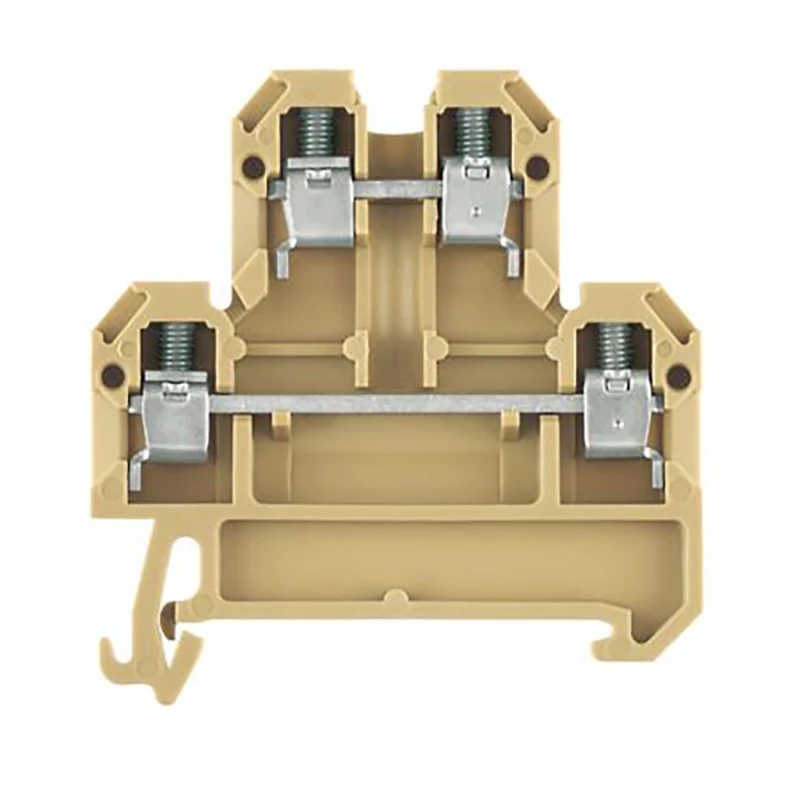

Weidmuller 4mm² 26-12AWG DIN Rail Terminal Block Beige/Yellow
£7.66 Incl. VAT
Weidmuller 0527660000 DK 4/35 32A modular feed-through terminal with 4mm² rated cross-section. It is made from polyamide 66. Screw connection for screwable cross-connection, one end without connector. Right side and snap-on mounting. -50 to 100°C continuous operating temperature. Conforms to IEC 60947-7-1. · · · Colour: Beige/Yellow · · Conductor Size: 26 to 12AWG · · Height: 50mm · · Material: Polyamide 66 · · Width: 6mm · · Weight: 11.77g · · Depth: 60.5mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 32 A Rated voltage 500 V Number of clamp positions per level 2 Number of levels 2 Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Explosion-tested version ‘Ex e’ No Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
