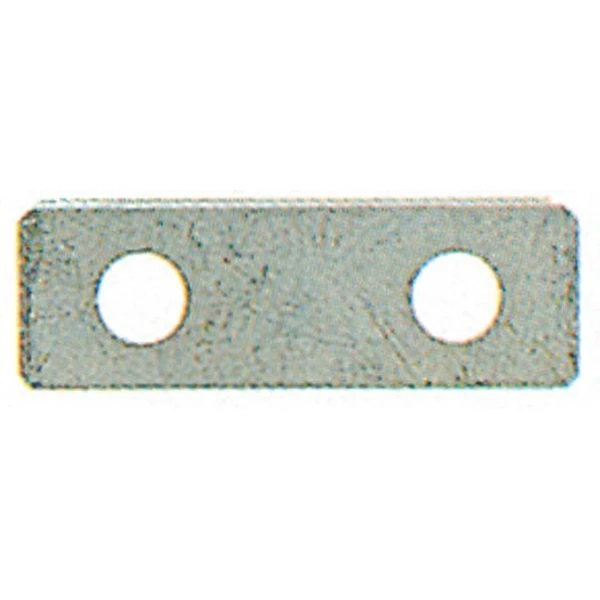

Weidmuller Cross Connector Copper-zinc 148g 40x5x95mm Grey
£16.99 Incl. VAT
Weidmuller 1065300000 2 Pole grey direct mounting bolt-type screw terminal cross-connector is made of copper-zinc body. The WQL 2 WFF300 cross-connector with threads can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. It is suitable for use with the bolt-type screw terminals. · · · Colour: Grey · · Height: 95mm · · Material: Copper-zinc · · Width: 40mm · · Weight: 148g · · Depth: 5mm
Description
Technical Specifications Technical Specifications Cross-connector for terminal block Colour Grey Model Transverse connector Modular spacing 55 mm Rated voltage 0 V Number of bridged clamps 2 Rated current In 520 A Explosion-tested version ‘Ex e’ No With shock protection No Insulated No · Technical Data Sheet – Click to Download
