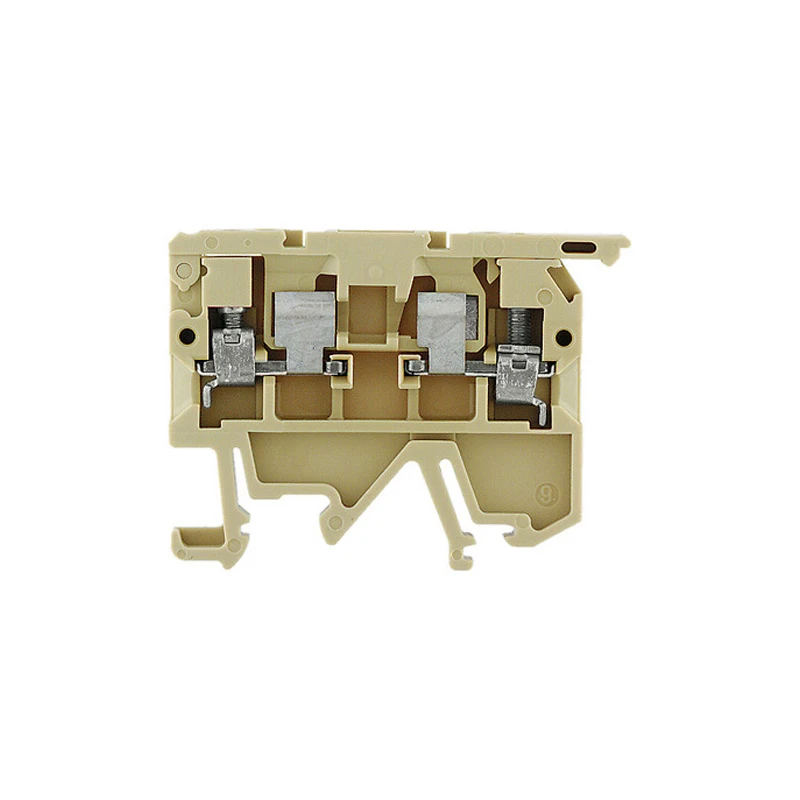

Weidmuller Fuse Terminal Block 6.3A 58 x 8.1 x 43mm Beige/Yellow
£6.52 Incl. VAT
This is a SAK Series Fuse Terminal made of polyamide 66 with Snap-On mounting. · · · High reliability · · Makes planning easer and optimises operational safety · · Klippon connect provides a proven response to a range of different requirements
Description
Technical Specifications Technical Specifications Fused terminal block Type of indication element for defect indication None Type of fuse insert G-fuse 5×20 mm Material insulation body Urea formaldehyde Mounting method DIN rail (top hat rail)/G-rail TH35/G32 Voltage type for defect indication AC/DC Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 500 V Number of levels 1 Rated current In 6.3 A Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Supply voltage for defect-indication 24 – 230 V Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
