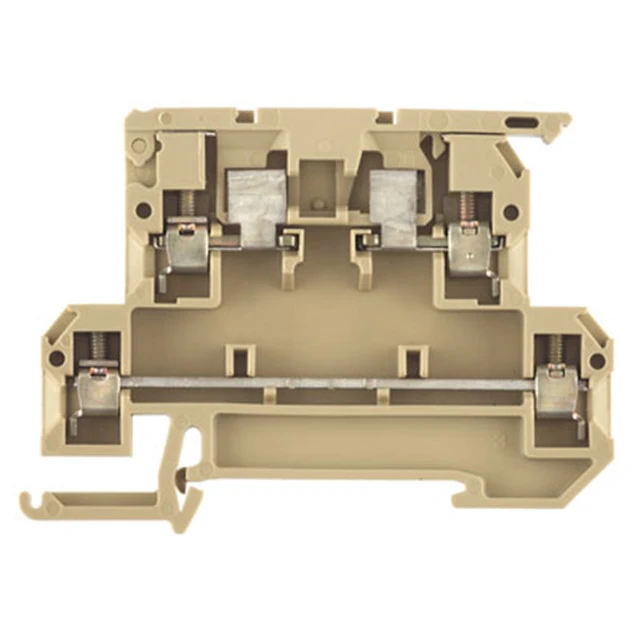

Weidmuller Fuse Terminal Kdks 1/35 4mm 500V Beige Screw Connector
£13.33 Incl. VAT
Weidmuller 9503310000 beige/yellow TS 35 snap-on direct mounting modular fuse terminal is made of PA 66 body. The KDKS 1/35 terminal features M3 clamping screw, 26 to 12AWG wire connection cross section, 0.5 to 0.8Nm tightening torque, 8kV rated impulse withstand voltage and 6.3A current at maximum wires. · · · Colour: Beige/Yellow · · Conductor Size: 26-12 AWG · · Connection Type: Screw · · Current Rating: 6.3A · · Material: Polyamide 66 · · Mounting Type: Snap-On · · Voltage Rating: 500V · · Weight: 2g · · CE: yes · · Dimensions: 8×55.6×73.5mm
Description
Technical Specifications Technical Specifications Fused terminal block Material insulation body Urea formaldehyde Mounting method DIN rail (top hat rail) 35 mm Colour Beige Voltage type for defect indication AC Type of electrical connection 1 Screw connection Rated voltage 500 V Type of electrical connection 2 Screw connection Number of levels 2 Operating temperature -50 – 100 °C Rated current In 6.3 A Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Supply voltage for defect-indication 10 – 24 V Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
