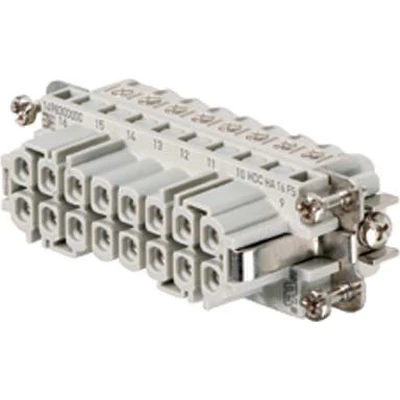

Weidmuller HA Insert 16 Contacts Copper Alloy Silver Passivated 71g 23x73x31.1mm Size 5
£18.29 Incl. VAT
Weidmuller 1650780000 16 Pole female HDC insert with screw connection. The HDC HA 16 FS insert is made of silver passivated copper alloy. The small and slim HA series can be used wherever space is limited. The wire connection level is designed for screw connections. All screw connection elements are equipped with wire protection (with the exception of size). A heavy-duty connector consists of a connector insert and its protective housing. The insert is therefore the heart of the heavy-duty connector. It is responsible for electrical functioning. Connector inserts from Weidmller are made from high-quality insulation materials, which allow secure transmission of high voltages in a tight space. Moreover, we use only a single type of plastic in our entire product line. This plastic is UL listed, and suitable for railway applications. This allows unlimited world-wide use of the RockStar connector. · · · Height: 31.1mm · · Length: 73mm · · Material: Copper Alloy · · Number of Contacts: 16 Contacts · · Range: HA · · Size: 5 · · Width: 23mm · · Weight: 71g · · Finish: Silver Passivated
Description
Technical Specifications Technical Specifications Contact insert for industrial connectors Material of contact insert Plastic Inflammability class of insulation material acc. with UL94 V0 Contact type Bus Material contact Copper Material of contact surface Silver Material connector of connector insert Thermoplastic Type of electric connection Screw connection Pollution degree 3 Rated surge voltage 6 kV Diameter plug-in contact 3.6 mm Rated voltage 600 V Rated current In 16 A Ambient temperature -40 – 125 °C Number of poles 16 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Contact insert without contacts No With protective conductor Yes With wire protection Yes · Technical Data Sheet – Click to Download
