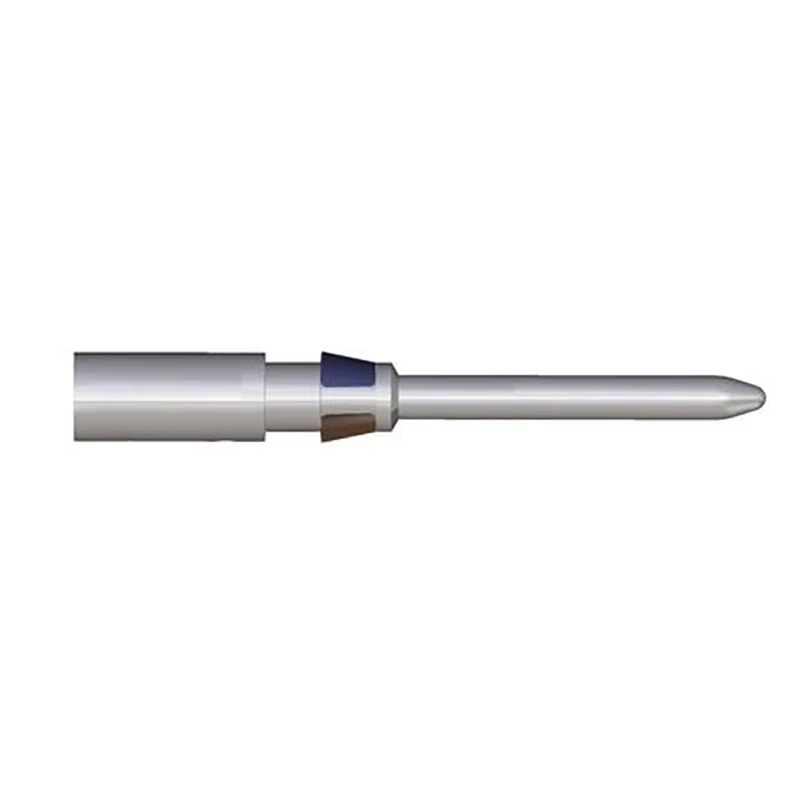

Weidmuller HD Connector 1 Contacts Copper Alloy Silver Plated 660g Silver
£0.65 Incl. VAT
HD series male heavy-duty connector with crimp connection. The HDC-C-HD-SM2.5AG connector is made of silver plated copper alloy. Crimp provide a electrical and mechanical connection between wire and contact that is both secure and reliable. The optimal crimp connection is gas-tight and corrosion-resistant. The heart of a connector is its contacts. They make up the actual connection between two conductors. The plug (male) implements the electrical connection along its outer surface. It is inserted into the socket, which conducts the electrical connection along the surface of its interior side. It is used wherever there is a need for a secure, simple and time-saving assembly of machinery and facilities. · · · Colour: Silver · · Length: 25mm · · Material: Copper Alloy · · Number of Contacts: 1 Contacts · · Range: HD · · Weight: 660g · · Diameter: 3.5mm · · Finish: Silver Plated
Description
Technical Specifications Technical Specifications Contact for industrial connectors Contact type Pin Type of electric connection Crimp connection Material contact Copper Diameter plug-in contact 2.5 mm Material of contact surface Silver Strip length 7.5 mm Max. rated current of one contact 16 A Ambient temperature -40 – 85 °C Connectable conductor cross section fine-strand without cable end sleeve 0.75 – 2.5 mm² Connectable conductor cross section multi-wired 2.5 – 2.5 mm² · Technical Data Sheet – Click to Download
