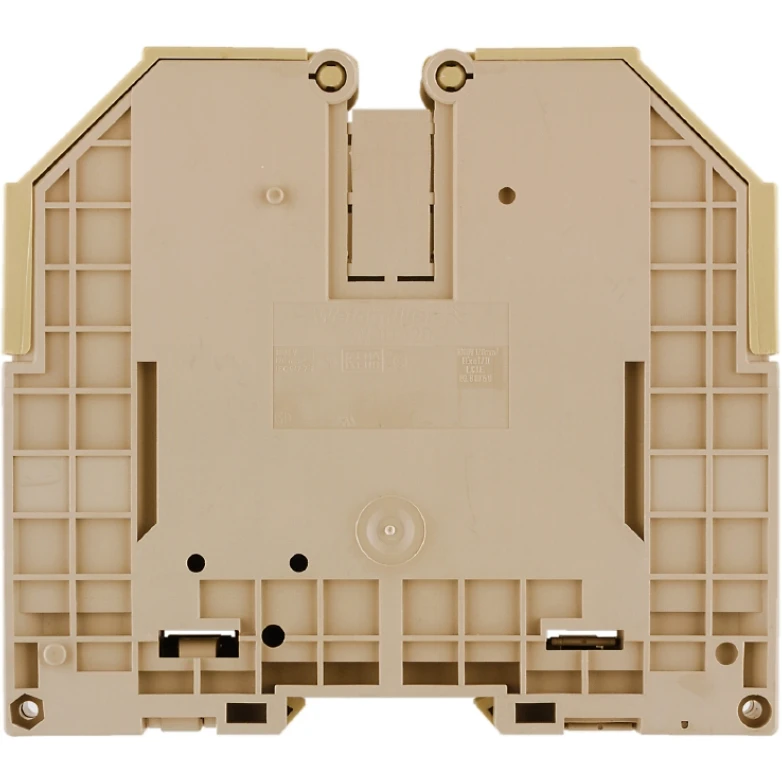

Weidmuller Klippon WDU 120/150 Terminal

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Beige Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 269 A Rated voltage 1000 V Number of levels 1 Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 35 – 150 mm² Connectable conductor cross section fine-strand with cable end sleeve 35 – 150 mm² Connectable conductor cross section solid-core 35 – 150 mm² Connectable conductor cross section multi-wired 35 – 150 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
