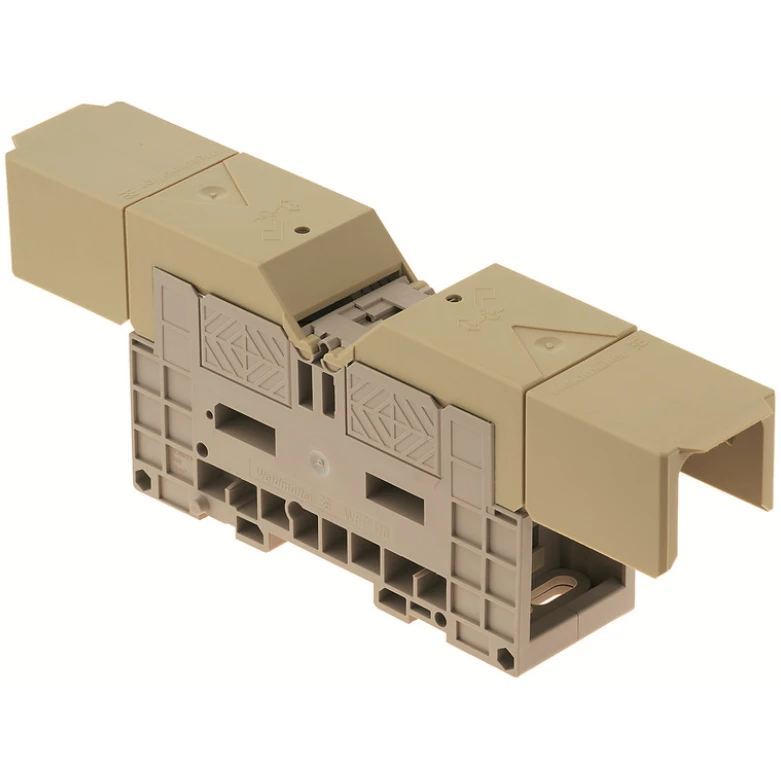

Weidmuller Klippon WFF 300/AH Terminal

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Bolt connection Type of electrical connection 2 Bolt connection Rated current In 520 A Rated voltage 1000 V Number of levels 1 Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section multi-wired 10 – 300 mm² Connectable conductor cross section fine-strand with cable end sleeve 25 – 240 mm² Connectable conductor cross section fine-strand without cable end sleeve 25 – 240 mm² Connectable conductor cross section solid-core 25 – 300 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
