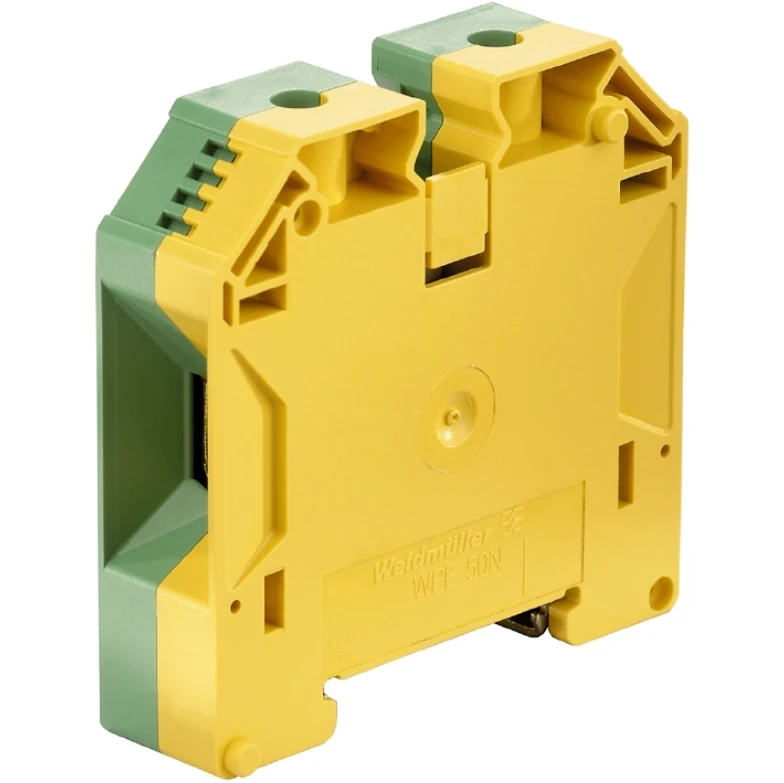

Weidmuller Klippon WPE 50N Terminal
£27.01 Incl. VAT
Description
Technical Specifications Technical Specifications Earth terminal block Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Colour Green/yellow Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of clamp positions per level 2 Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 6 – 50 mm² Connectable conductor cross section fine-strand without cable end sleeve 6 – 70 mm² Connectable conductor cross section multi-wired 6 – 70 mm² Connectable conductor cross section solid-core 6 – 70 mm² PEN function possible No Closing plate required No · Technical Data Sheet – Click to Download
