Weidmuller Relay 56g 12.8x87.8x89.6mm
Weidmuller Relay 56g 12.8x87.8x89.6mm
Weidmuller Relay 56g 12.8x87.8x89.6mm - Image 2

Weidmuller Relay 56g 12.8×87.8×89.6mm

£17.30 Incl. VAT

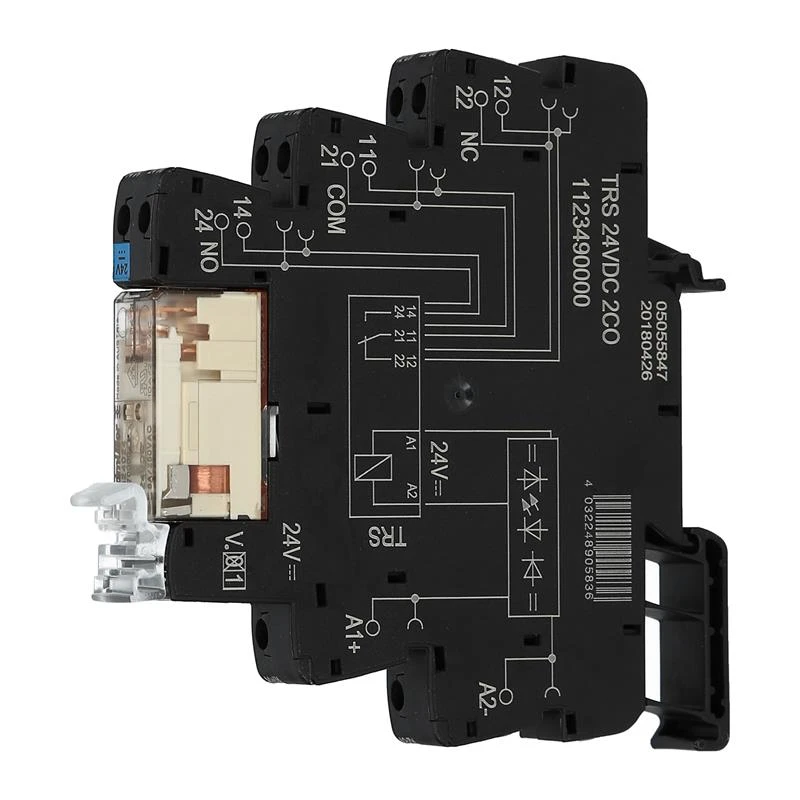

Weidmuller 1123490000 TE RMSERIES relay with screw connection. The TRS 24V DC 2CO relay is made of AgNi contact. TE RMSERIES complete relay module consists of a relay and a base with DC coils. It provides integrated free-wheel diode, reverse polarity protection. Relay coupler is universal separation elements in electrical automation. It is precisely because of this universal application field that there are changing and diverse requirements. The symmetry of the product’s contours means it can be installed in any direction. Unlimited cross-connection possibilities, even beyond partition plates, ensure flexible application, no matter how unusual your needs are. · · · Height: 89.6mm · · Width: 12.8mm · · Weight: 56g · · Depth: 87.8mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1123490000 Categories: , , , Brand: Product Code: 2500630332

Description

Technical Specifications  Technical Specifications Switching relay Drive, switching attitude Mono stable Voltage type for actuating DC Drive, polarization Polarized Degree of protection (IP rating) IP20 Width 12.8 mm Number of contacts as normally closed contact 1 Number of contacts as normally open contact 1 Depth 88 mm Number of contacts as change-over contact 2 Rated control supply voltage at AC 50 Hz 0 V Height 90 mm Rated control supply voltage at DC 0 – 24 V Rated control supply voltage at AC 60 Hz 0 V With detachable clamps No With forced-guided contacts No Complete with socket Yes · Technical Data Sheet – Click to Download
