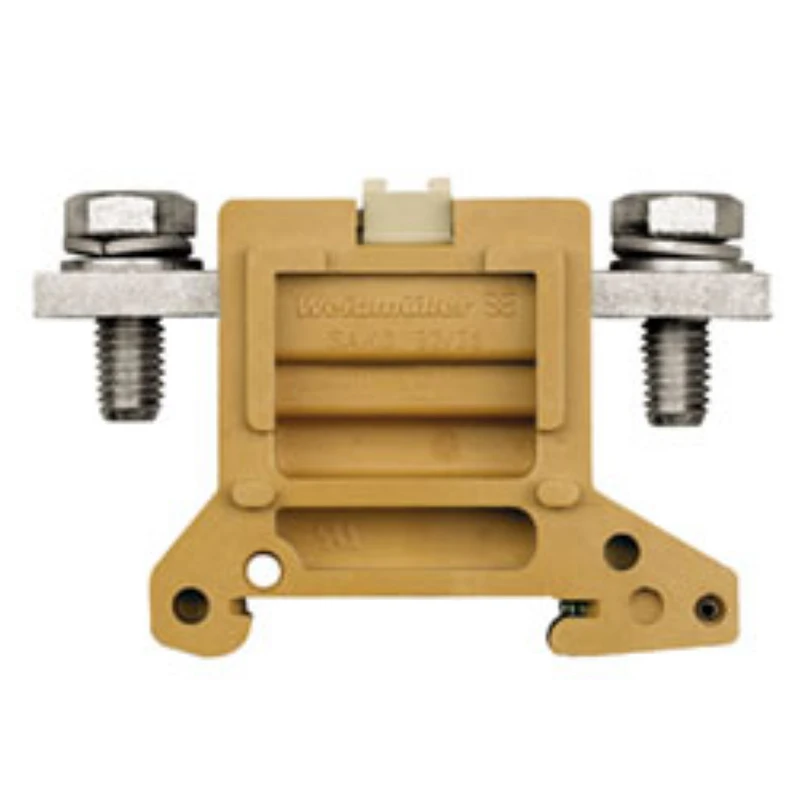

Weidmuller Terminal 1-2 / 0AWG KrG 149g 32x53x80mm Medium Yellow
Weidmuller Terminal 1-2 / 0AWG KrG 149g 32x53x80mm Medium Yellow
Weidmuller Terminal 1-2 / 0AWG KrG 149g 32x53x80mm Medium Yellow - Image 2

Weidmuller Terminal 1-2 / 0AWG KrG 149g 32x53x80mm Medium Yellow

£34.46 Incl. VAT

Weidmuller 0637420000 medium yellow TS 35 snap-on mounting special feed through terminal is made of KrG body. The SAKG 32/35 II/GW feed through terminal contains no colour pigments based on heavy metals and do not lead to the formation of dioxin/furan. It features M8 clamping screw, 1 to 2/0AWG wire connection cross section, 6 to 12Nm tightening torque, 8kV rated impulse withstand voltage and 192A current at maximum wires. · · · Colour: Medium Yellow · · Conductor Size: 1-2 / 0 AWG · · Height: 80mm · · Material: KrG · · Width: 32mm · · Weight: 149g · · Depth: 53mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 637420000 Category: Brand: Product Code: 2500014099

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Beige Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 150 A Rated voltage 1000 V Number of clamp positions per level 2 Number of levels 1 Connectable conductor cross section multi-wired 4 – 35 mm² Operating temperature -60 – 130 °C Connectable conductor cross section fine-strand without cable end sleeve 6 – 35 mm² Connectable conductor cross section solid-core 6 – 16 mm² Connectable conductor cross section fine-strand with cable end sleeve 6 – 35 mm² Internally connected stages No Explosion-tested version ‘Ex e’ No Closing plate required Yes · Technical Data Sheet – Click to Download
