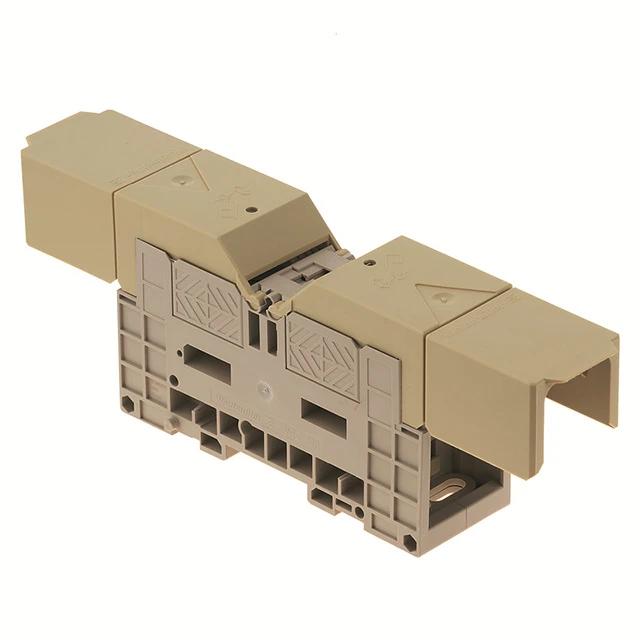

Weidmuller Terminal 10AWG Wemid 303g 42x72x229.5mm Dark Beige
£34.43 Incl. VAT
Weidmuller 1029500000 dark beige TS 35 snap-on mounting bolt-type twin-screw feed through terminal is made of Wemid body. The WFF 70/AH feed through terminal features 1000V DC rated voltage tested. It also features M10 stud size for spade connection, 10AWG to 250kcmil wire connection cross section, 10 to 20Nm tightening torque, 6kV rated impulse withstand voltage and 309A current at maximum wires. The bolt-type screw terminal offers secure connections for all power transmission applications. Bolt-type screw terminals with M10 thread can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. This bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. · · · Colour: Dark Beige · · Conductor Size: 10 AWG · · Height: 229.5mm · · Material: Wemid · · Width: 42mm · · Weight: 303g · · Depth: 72mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Bolt connection Type of electrical connection 2 Bolt connection Rated current In 269 A Rated voltage 1000 V Number of clamp positions per level 2 Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section multi-wired 10 – 120 mm² Connectable conductor cross section solid-core 6 – 120 mm² Connectable conductor cross section fine-strand without cable end sleeve 6 – 150 mm² Connectable conductor cross section fine-strand with cable end sleeve 6 – 150 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
