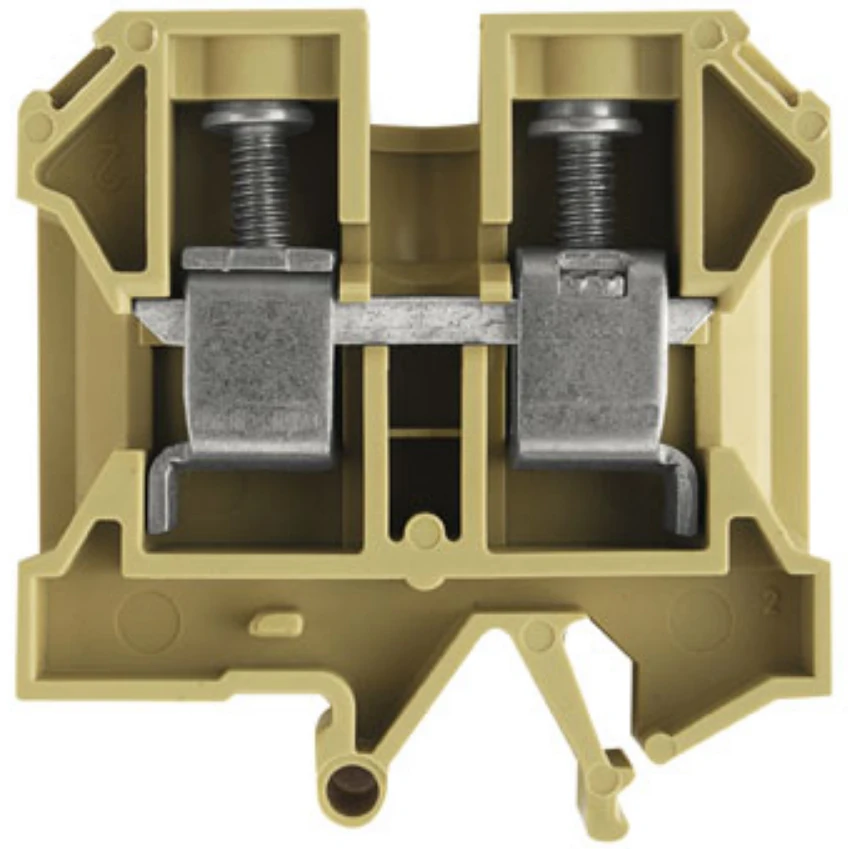

Weidmuller Terminal 14-4AWG Polyamide 66 26g 12×57.5x50mm Beige/Yellow
£3.67 Incl. VAT
Weidmuller 0271060000 beige/yellow TS 32 snap-on mounting modular feed-through terminal is made of PA 66 body. The SAK 16 terminal satisfies the requirements of IEC 60947-1 and are available with rated cross-sections from 16mm². It features 14 to 4AWG wire cross section, M4 clamping screw and 8kV rated impulse withstand voltage. Twin wire end ferrules ZH 2.5 – ZH 16 can be used. · · · Colour: Beige/Yellow · · Conductor Size: 14-4 AWG · · Height: 50mm · · Material: Polyamide 66 · · Width: 12mm · · Weight: 26g · · Depth: 57.5mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Mounting method G-rail Colour Beige Material insulation body Thermoplastic Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated current In 76 A Rated voltage 1000 V Number of levels 1 Number of clamp positions per level 2 Connectable conductor cross section solid-core 2.5 – 10 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand with cable end sleeve 4 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 4 – 16 mm² Connectable conductor cross section multi-wired 4 – 16 mm² Explosion-tested version ‘Ex e’ No Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
