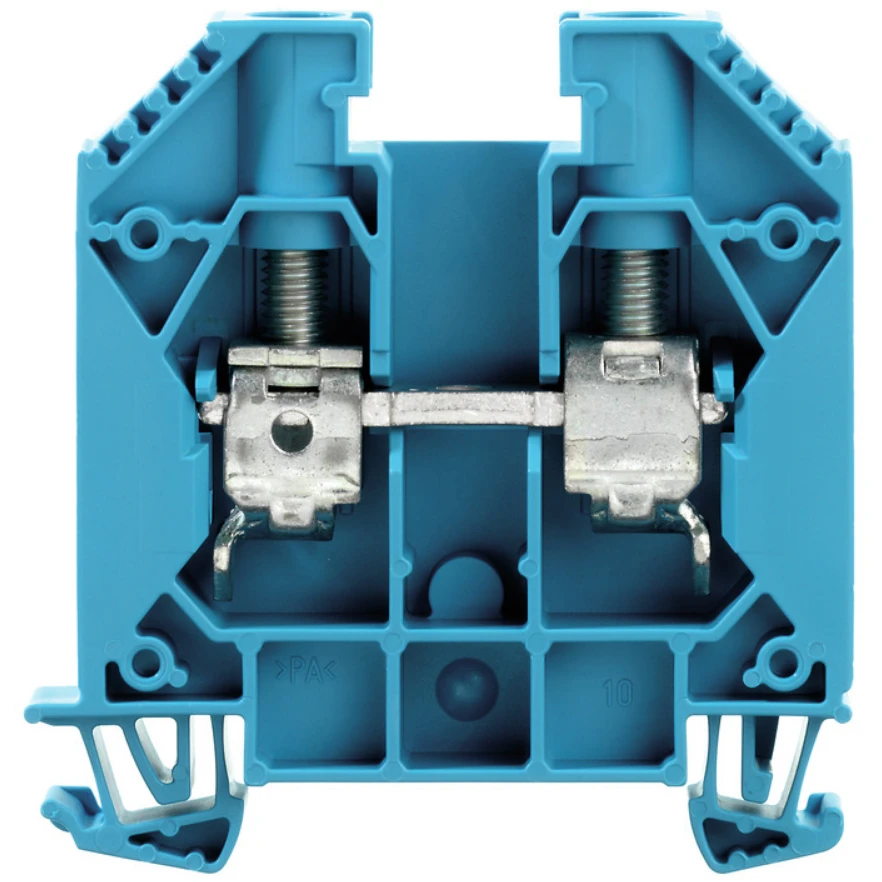

Weidmuller Terminal 14-6AWG Wemid 31g 11.9x62.5x60mm Blue
Weidmuller Terminal 14-6AWG Wemid 31g 11.9x62.5x60mm Blue
Weidmuller Terminal 14-6AWG Wemid 31g 11.9x62.5x60mm Blue - Image 2

Weidmuller Terminal 14-6AWG Wemid 31g 11.9×62.5x60mm Blue

£2.60 Incl. VAT

Weidmuller 1020480000 blue TS 35 snap-on mounting modular feed through terminal is made of Wemid body. The WDU 16 BL feed through terminal version comes without pegs. It also features M5 clamping screw, 14 to 6AWG wire connection cross section, 3 to 4Nm tightening torque, 8kV rated impulse withstand voltage and 101A current at maximum wires. · · · Colour: Blue · · Conductor Size: 14-6 AWG · · Height: 63mm · · Material: Wemid · · Width: 11.9mm · · Weight: 31g · · Depth: 62.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1020480000 Category: Brand: Product Code: 2500013469

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 76 A Rated voltage 1000 V Number of levels 1 Number of clamp positions per level 2 Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Operating temperature -50 – 120 °C Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 25 mm² Connectable conductor cross section multi-wired 1.5 – 25 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
