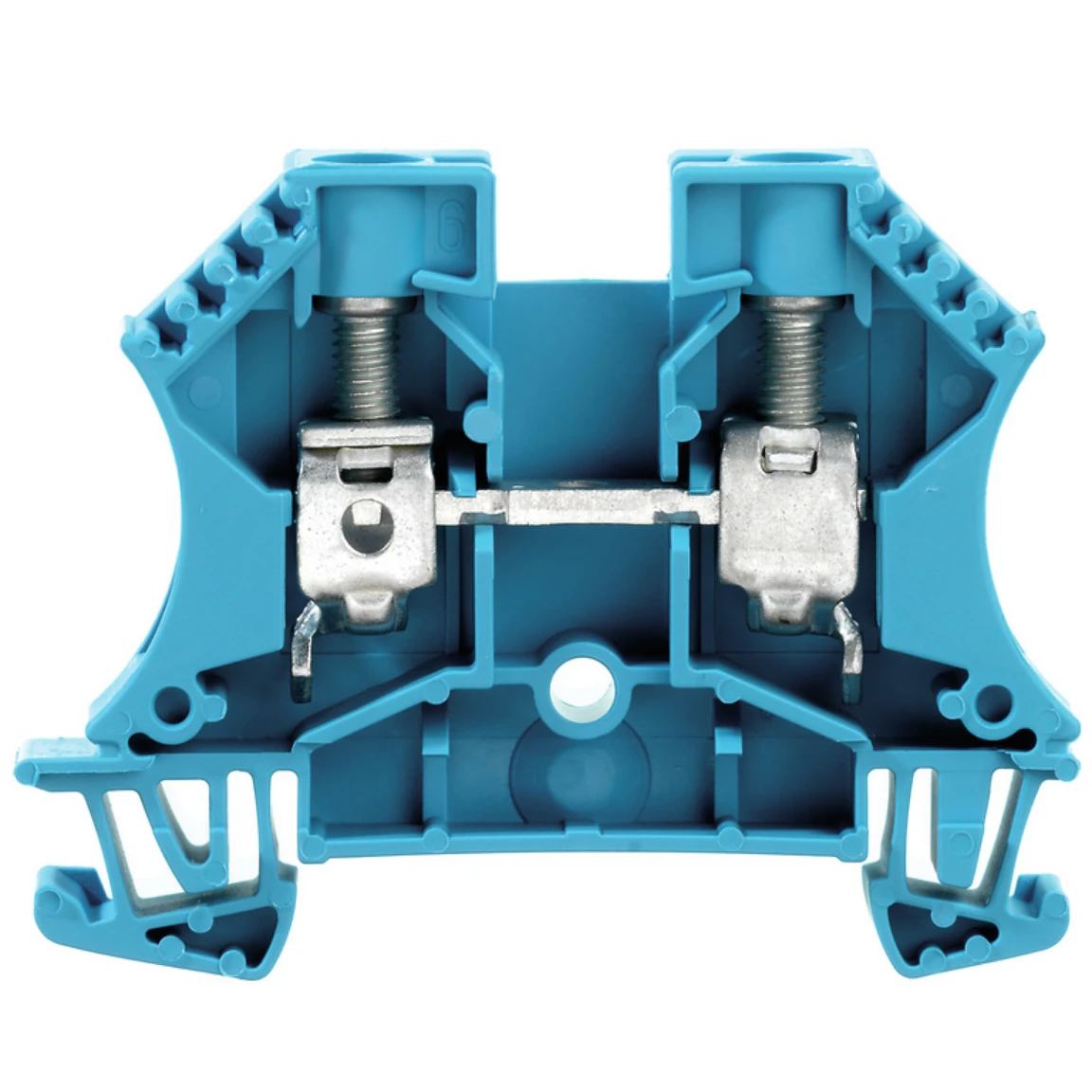

Weidmuller Terminal 16-6AWG Wemid 19g 9.9x46.5x60mm Blue
Weidmuller Terminal 16-6AWG Wemid 19g 9.9x46.5x60mm Blue
Weidmuller Terminal 16-6AWG Wemid 19g 9.9x46.5x60mm Blue - Image 2

Weidmuller Terminal 16-6AWG Wemid 19g 9.9×46.5x60mm Blue

£1.96 Incl. VAT

Weidmuller 1020380000 blueTS 35 snap-on mounting modular feed through terminal is made of Wemid body. The WDU 10 BL feed through terminal features 1000V DC rated voltage tested. It also features M4 clamping screw, 16 to 6AWG wire connection cross section, 1.2 to 1.9Nm tightening torque, 8kV rated impulse withstand voltage and 76A current at maximum wires. · · · Colour: Blue · · Conductor Size: 16-6 AWG · · Height: 60mm · · Material: Wemid · · Width: 9.9mm · · Weight: 19g · · Depth: 46.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1020380000 Category: Brand: Product Code: 2500013467

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of levels 1 Rated current In 57 A Rated voltage 1000 V Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section multi-wired 1.5 – 16 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
