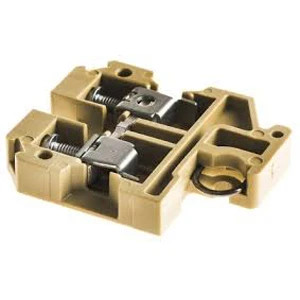

Weidmuller Terminal 20-8AWG Polyamide 66 14g 8 x 49 x 40mm Beige/Yellow
£2.11 Incl. VAT
Weidmuller 0193260000 beige/yellow snap-on direct TS 32 mounting modular feed through terminal is made of PA 66 body. The SAK 6N feed-through terminal satisfies the requirements of IEC 60947-1 and is available with rated cross-section of 6mm². It features 20 to 8AWG wire cross section, M3.5 clamping screw, on side connection direction, 57A current at maximum wires and 8kV rated impulse withstand voltage. The terminal with 6AWG and H07V-R10 conductors, an increased MD torque of 1.4 to 1.6Nm must be applied. When used with twin wire-end ferrules ZH 0.5 – ZH 4, the rated voltage is 690V. · · · Colour: Beige/Yellow, Material: Polyamide 66 · · Conductor Size: 20-8 AWG · · Connection Type: Screw · · Current Rating: 47A · · Length: 40mm · · Mounting Type: Snap-On · · Voltage Rating: 800V · · Method of Explosion Protection: ATEX Directive 94/9/EC · · CE: yes · · Dimensions: 8x49x40mm, Weight: 14g
Description
Technical Specifications Technical Specifications Feed-through terminal block Mounting method G-rail Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Rated current In 41 A Number of levels 1 Operating temperature -50 – 100 °C Number of clamp positions per level 2 Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section multi-wired 0.5 – 6 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Closing plate required Yes Internally connected stages No · Technical Data Sheet – Click to Download
