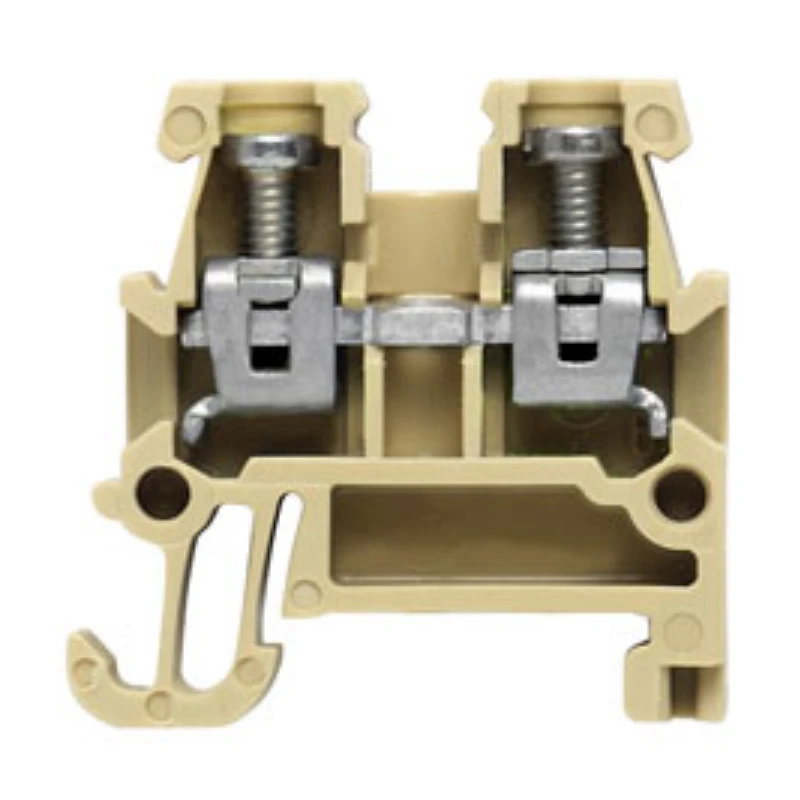

Weidmuller Terminal 24-16AWG Polyamide 66 3g 5.1x24x24.8mm Beige/Yellow
Weidmuller Terminal 24-16AWG Polyamide 66 3g 5.1x24x24.8mm Beige/Yellow
Weidmuller Terminal 24-16AWG Polyamide 66 3g 5.1x24x24.8mm Beige/Yellow - Image 2

Weidmuller Terminal 24-16AWG Polyamide 66 3g 5.1x24x24.8mm Beige/Yellow

£1.81 Incl. VAT

Weidmuller 0340460000 beige/yellow TS 15 clamped mounting feed-through terminal made of PA 66 body. The AKZ 1.5 feed-through terminal satisfies the requirements of IEC 60947-1 and are available with rated cross-sections from 1.5mm². It features 24 to 16AWG wire cross section, M2.5 clamping screw, 4kV rated impulse withstand voltage, 24A current at maximum wires and 0.4 to 0.6Nm tightening torque range. · · · Colour: Beige/Yellow · · Conductor Size: 24-16 AWG · · Height: 24.8mm · · Material: Polyamide 66 · · Width: 5.1mm · · Weight: 3g · · Depth: 24mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 340460000 Category: Brand: Product Code: 2500014370

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated current In 17.5 A Rated voltage 250 V Number of clamp positions per level 2 Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 1.5 mm² Operating temperature -50 – 100 °C Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 1.5 mm² Explosion-tested version ‘Ex e’ Yes Connectable conductor cross section multi-wired 1.5 – 1.5 mm² Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
