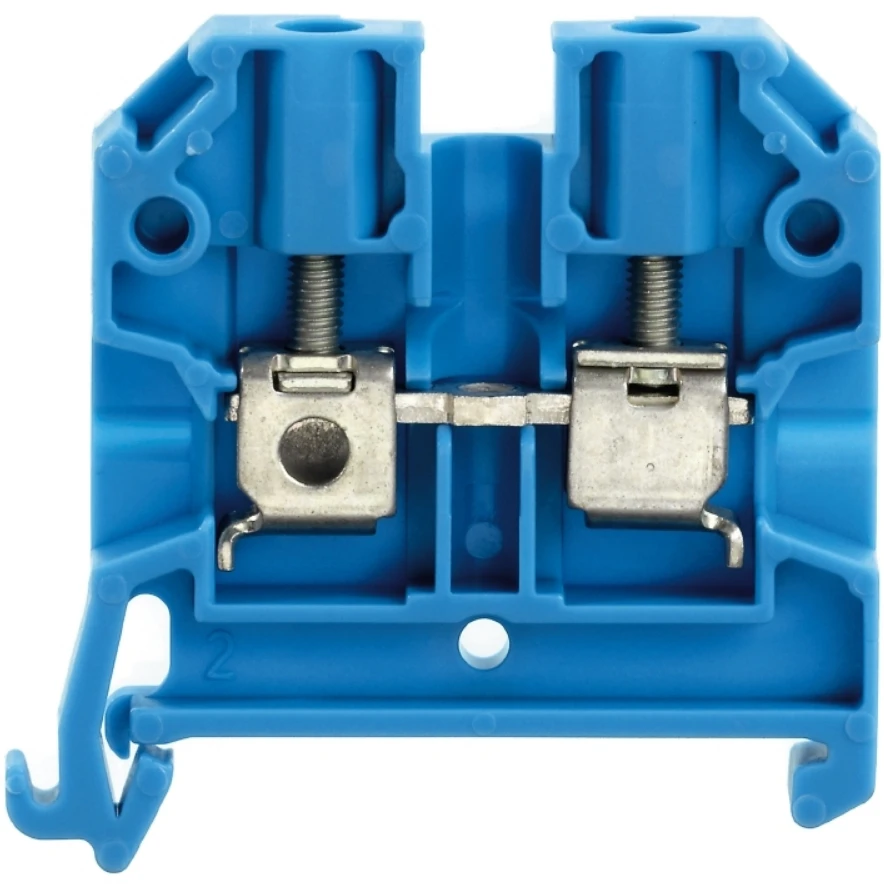

Weidmuller Terminal 26-10AWG Polyamide 66 11g 6.5x44x45mm Blue
£3.23 Incl. VAT
Weidmuller 0443680000 blue TS 35 snap-on direct mounting modular feed-through terminal is made of PA 66 body. The SAK 4/35 BL feed-through terminal satisfies the requirements of IEC 60947-1 and is available with rated cross-section of 4mm². With twin wire-end ferrules ZH 0.5 to ZH 2.5, the rated voltage is 690V. It features 26 to 10AWG wire cross-section, M3 clamping screw and 8kV rated impulse withstand voltage, 41A current at maximum wires and 0.5 to 1Nm tightening torque. · · · Colour: Blue · · Conductor Size: 26-10 AWG · · Height: 45mm · · Material: Polyamide 66 · · Width: 6.5mm · · Weight: 11g · · Depth: 44mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Rated voltage 800 V Type of electrical connection 2 Screw connection Number of levels 1 Type of electrical connection 1 Screw connection Number of clamp positions per level 2 Operating temperature -50 – 100 °C Rated current In 32 A Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
