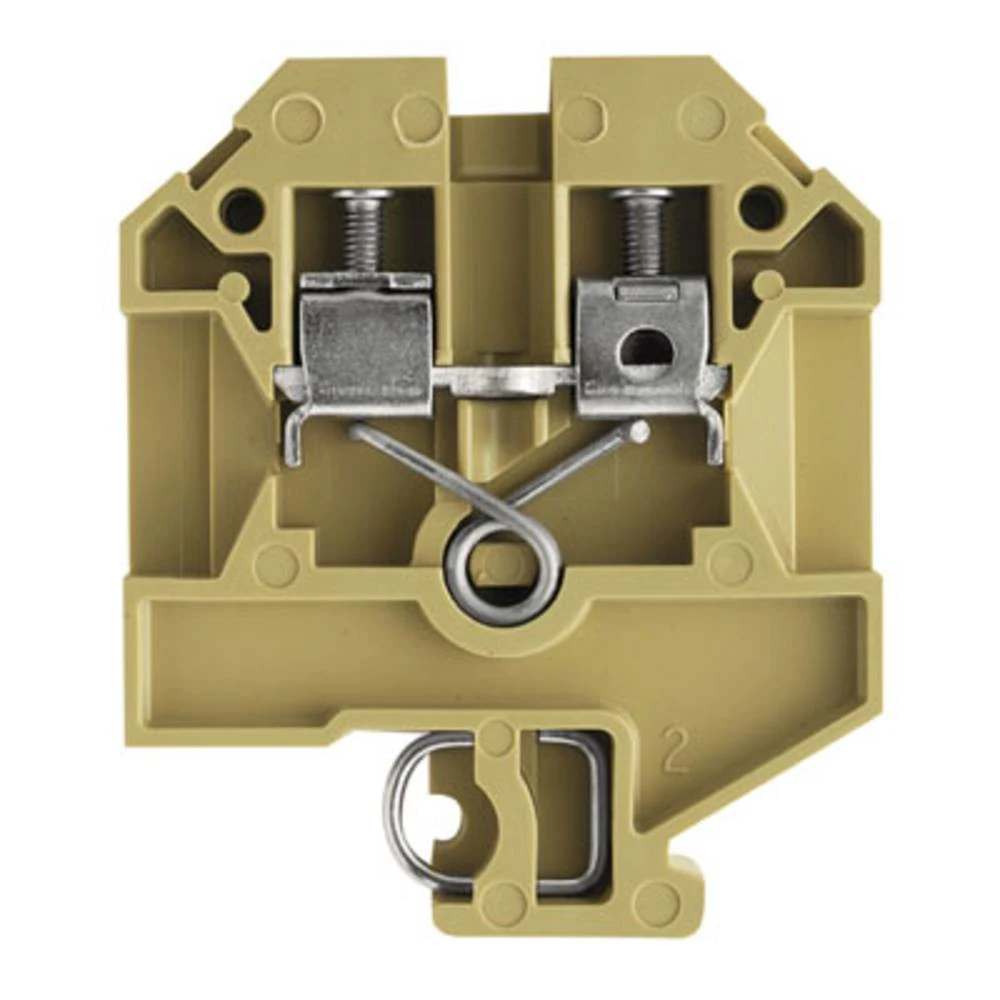

Weidmuller Terminal 26-10AWG Polyamide 66 11g 6.5x51.5x40mm Beige/Yellow - Image 2

Weidmuller Terminal 26-10AWG Polyamide 66 11g 6.5×51.5x40mm Beige/Yellow

£1.64 Incl. VAT

Weidmuller 1716240000 beige/yellow TS 32 snap-on mounting modular feed through terminal is made of PA 66 body. The SAK 4 terminal satisfies the requirements of IEC 60947-1 and is available with rated cross-section of 4mm². With twin ferrules ZH 0.5 to ZH 2.5, rated voltage is 690V. It features M3 clamping screw, 26 to 10AWG wire connection cross section, 0.5 to 1Nm tightening torque, 8kV rated impulse withstand voltage and 41A current at maximum wires. · · · Colour: Beige/Yellow · · Conductor Size: 26-10 AWG · · Height: 40mm · · Material: Polyamide 66 · · Width: 6.5mm · · Weight: 11g · · Depth: 51.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1716240000 Category: Brand: Product Code: 2500626380

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 32 A Number of levels 1 Number of clamp positions per level 2 Rated voltage 800 V Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Closing plate required Yes Internally connected stages No · Technical Data Sheet – Click to Download
