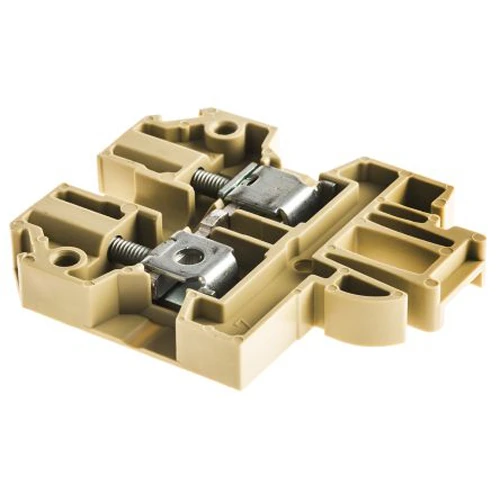

Weidmuller Terminal 26-10AWG Polyamide 66 9g 6.5 x 51.5 x 40mm Beige/Yellow
Weidmuller Terminal 26-10AWG Polyamide 66 9g 6.5 x 51.5 x 40mm Beige/Yellow
Weidmuller Terminal 26-10AWG Polyamide 66 9g 6.5 x 51.5 x 40mm Beige/Yellow - Image 2

Weidmuller Terminal 26-10AWG Polyamide 66 9g 6.5 x 51.5 x 40mm Beige/Yellow

£1.66 Incl. VAT

Weidmuller 0128360000 beige/yellow direct TS 32 snap-on mounting modular feed-through terminal is made of PA 66 body. The SAK 4 terminal satisfy the requirements of IEC 60947-1 and is available with rated cross-sections of 4mm². The terminal with twin wire-end ferrules ZH 0.5 to ZH 2.5, the rated voltage is 690V. · · · Colour: Beige/Yellow · · Conductor Size: 26-10 AWG · · Connection Type: Screw · · Current Rating: 32A · · Material: Polyamide 66 · · Mounting Type: Snap-On · · Voltage Rating: 800V · · Weight: 9g · · Dimensions: 6.5×51.5x40mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 128360000 Category: Brand: Product Code: 2500160445

Description

Technical Specifications  Technical Specifications Feed-through terminal block Mounting method G-rail Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Rated current In 32 A Number of clamp positions per level 2 Operating temperature -50 – 100 °C Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
