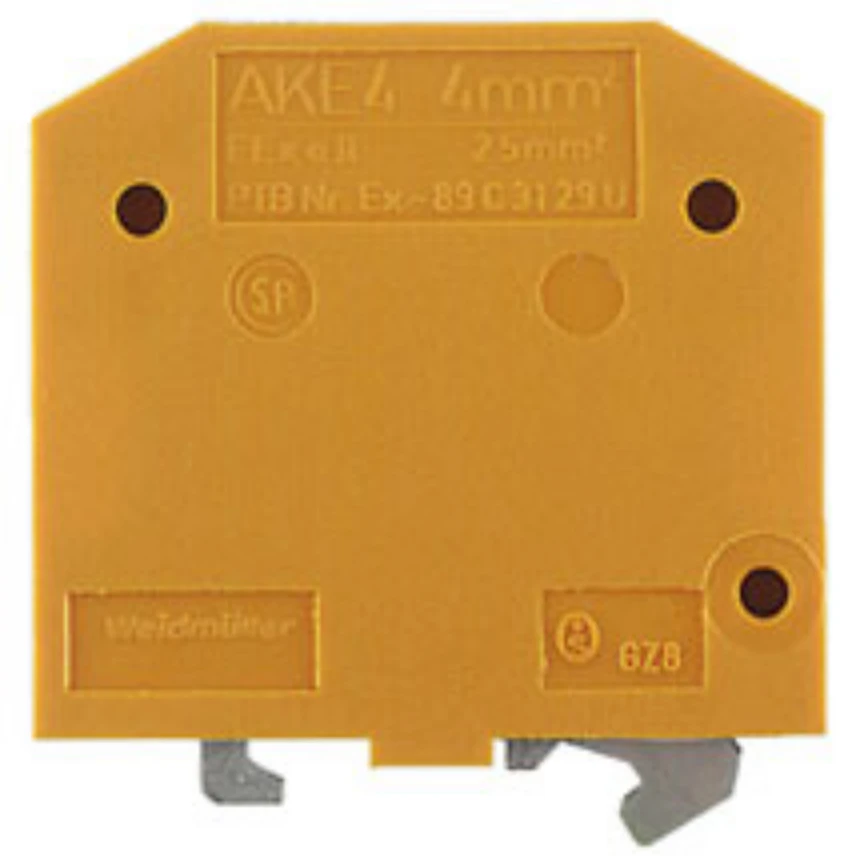

Weidmuller Terminal 26-12AWG Polyamide 66 11g 7×34.5x32mm Yellow/Green
£9.44 Incl. VAT
Weidmuller 0380260000 socket is suitable for use with the terminals. It is equipped with a slit so that they can be actuated with a screwdriver. · · · Colour: Yellow/Green · · Conductor Size: 26-12 AWG · · Height: 32mm · · Material: Polyamide 66 · · Width: 7mm · · Weight: 11g · · Depth: 34.5mm
Description
Technical Specifications Technical Specifications Earth terminal block Mounting method DIN rail (top hat rail) 15 mm Material insulation body Thermoplastic Colour Green/yellow Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Number of levels 1 Number of clamp positions per level 2 Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Closing plate required No Connectable conductor cross section multi-wired 0.5 – 4 mm² PEN function possible No · Technical Data Sheet – Click to Download
