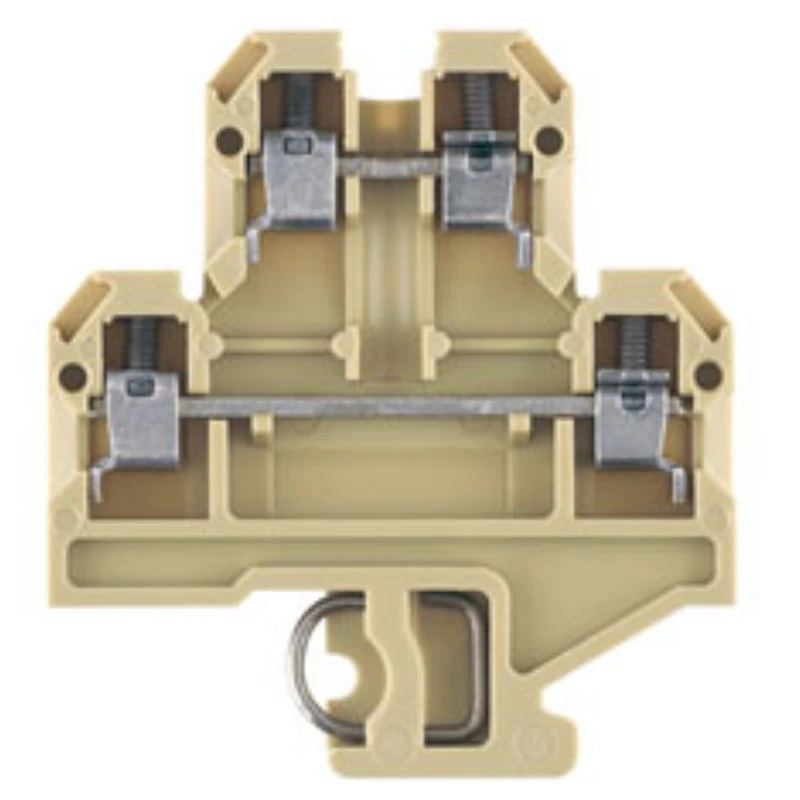

Weidmuller Terminal 26-12AWG Polyamide 66 13g 6×59.5x50mm Beige/Yellow
£3.94 Incl. VAT
Weidmuller 0355460000 beige/yellow clamped mounting modular feed-through 2-tier terminal made of PA 66 body. The DK 4 terminal contains no colour pigments based on heavy metals and do not lead to the formation of dioxin/furan. It features M3 clamping screw, 26 to 12AWG wire connection cross section, 0.5 to 0.8Nm tightening torque range and 6kV rated impulse withstand voltage. · · · Colour: Beige/Yellow · · Conductor Size: 26-12 AWG · · Height: 50mm · · Material: Polyamide 66 · · Width: 6mm · · Weight: 13g · · Depth: 59.5mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated current In 32 A Rated voltage 500 V Number of clamp positions per level 2 Number of levels 2 Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Internally connected stages No Connectable conductor cross section solid-core 0.5 – 6 mm² Closing plate required Yes Explosion-tested version ‘Ex e’ Yes · Technical Data Sheet – Click to Download
