Weidmuller Terminal 26-12AWG Wemid 2g 7.9x73x79.5mm Dark Beige
£5.65 Incl. VAT

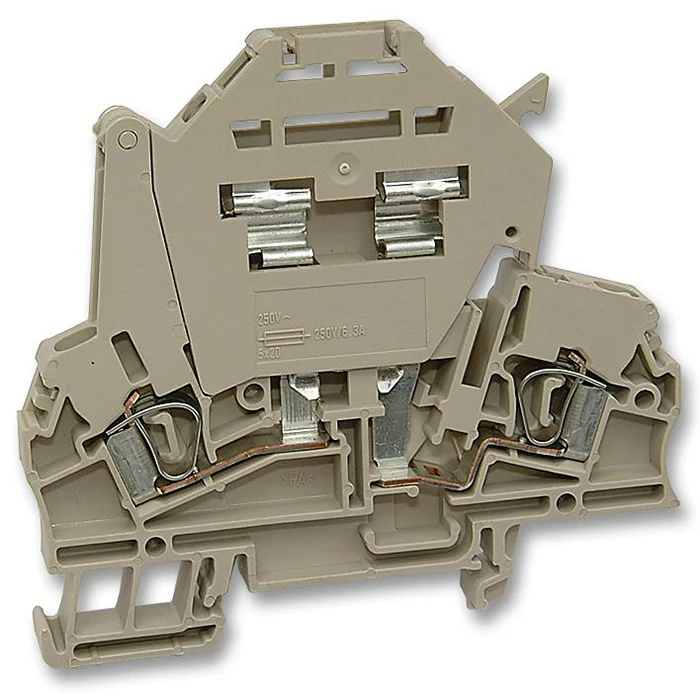

Weidmuller 1616400000 dark beige TS 35 snap-on direct mounting fuse terminal is made of Wemid body. The ZSI 2.5 fuse terminal with pivoting locking lever. It features 26 to 12AWG wire connection cross section, G-Si. 5 x 20 cartridge fuse, 6kV rated impulse withstand voltage and 6.3A current at maximum wires. The rated voltage for cartridge fuse holders is 250V and the rated impulse voltage 4kV. · · · Colour: Dark Beige · · Conductor Size: 26-12 AWG · · Height: 79.5mm · · Material: Wemid · · Width: 7.9mm · · Weight: 2g · · Depth: 73mm
Description
Technical Specifications Technical Specifications Fused terminal block Material insulation body Urea formaldehyde Type of fuse insert G-fuse 5×20 mm Colour Beige Mounting method DIN rail (top hat rail) 35 mm Type of fuse holder Swivelling Type of electrical connection 2 Spring clamp connection Type of electrical connection 1 Spring clamp connection Voltage type for defect indication AC/DC Rated current In 6.3 A Rated voltage 500 V Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Supply voltage for defect-indication 10 – 230 V Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
