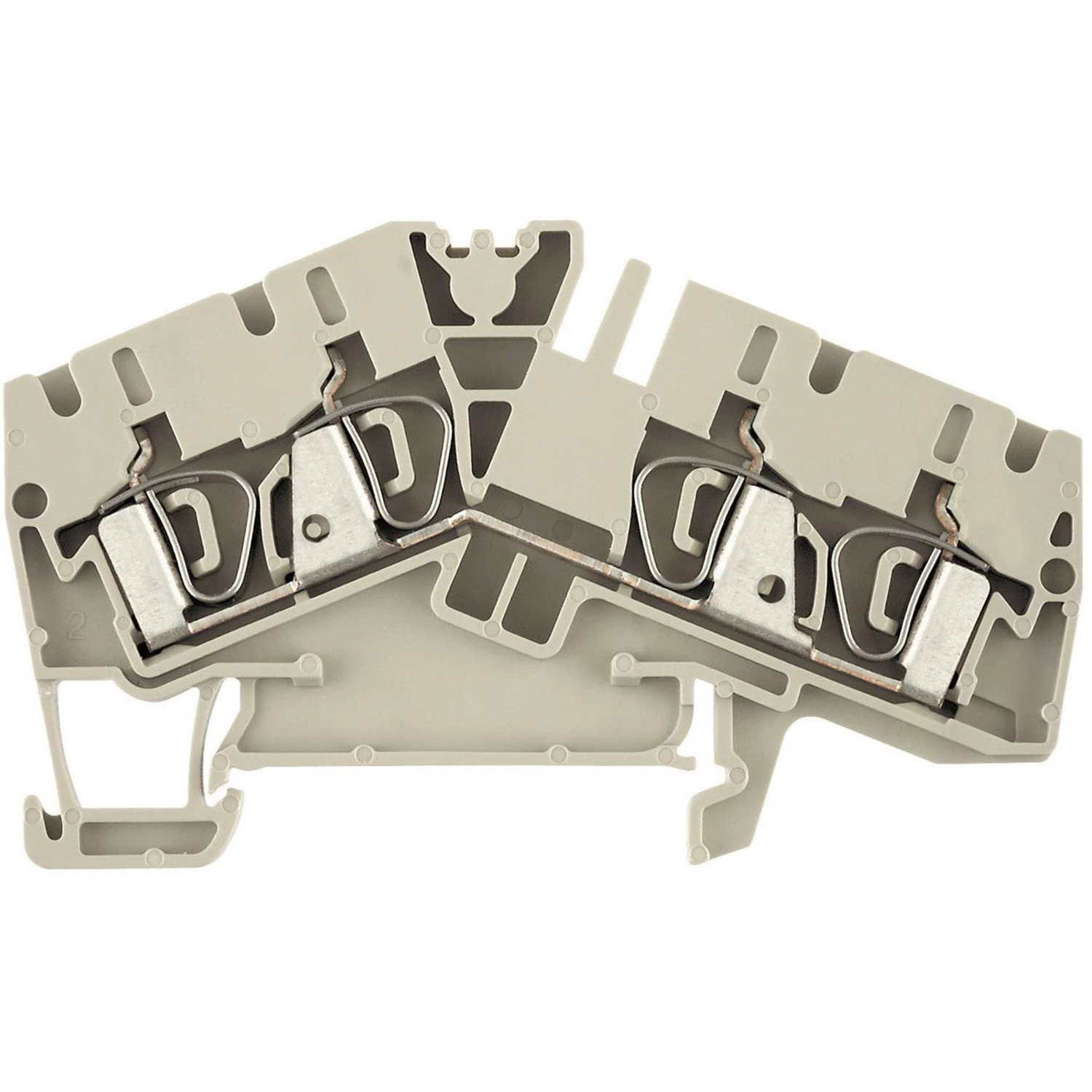

Weidmuller Terminal 26-12AWG Wemid 7g 5.1x43x50.5mm Dark Beige
Weidmuller Terminal 26-12AWG Wemid 7g 5.1x43x50.5mm Dark Beige
Weidmuller Terminal 26-12AWG Wemid 7g 5.1x43x50.5mm Dark Beige - Image 2

Weidmuller Terminal 26-12AWG Wemid 7g 5.1x43x50.5mm Dark Beige

£1.37 Incl. VAT

Weidmuller 1706010000 dark beige TS 35 snap-on mounting modular feed through terminal is made of Wemid body. The ZDU 2.5-2/3AN terminal features less space, spacious labelling area, integrated test point, cross connection functionality within the Z series. Rated voltage is reduced to 400V when using the cross-connector. 2.5mm² flexible wires with wire-end ferrules are crimped with the Weidmller PZ 6/5 crimping tool. It also features 26 to 12AWG wire connection cross section, 8kV rated impulse withstand voltage and 24A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 26-12 AWG · · Height: 50.5mm · · Material: Wemid · · Width: 5.1mm · · Weight: 7g · · Depth: 43mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1706010000 Category: Brand: Product Code: 2500200188

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Spring clamp connection Type of electrical connection 2 Spring clamp connection Rated voltage 800 V Number of clamp positions per level 3 Number of levels 1 Rated current In 24 A Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
