Weidmuller Terminal 28-12AWG Polyamide 66 6g 5x43.5x32.5mm Beige/Yellow
Weidmuller Terminal 28-12AWG Polyamide 66 6g 5x43.5x32.5mm Beige/Yellow
Weidmuller Terminal 28-12AWG Polyamide 66 6g 5x43.5x32.5mm Beige/Yellow - Image 2

Weidmuller Terminal 28-12AWG Polyamide 66 6g 5×43.5×32.5mm Beige/Yellow

Pack of 5

£7.38 Incl. VAT

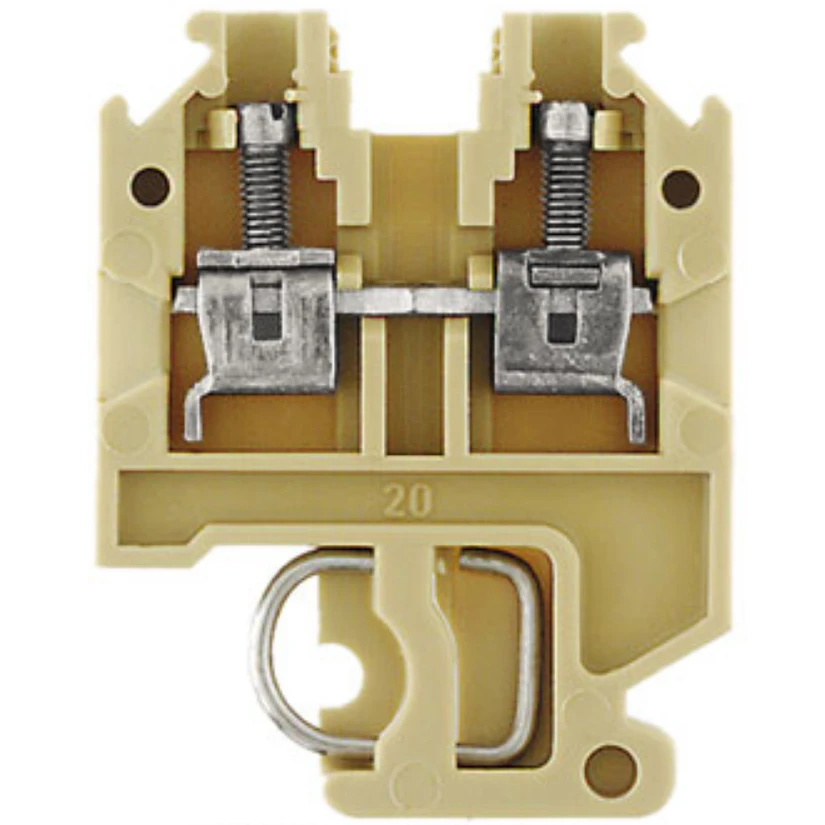

Weidmuller 0215560000 beige/yellow TS 32 direct snap-on mounting modular feed-through terminal is made of PA 66 body. The SAKD 2.5N feed-through terminal satisfies the requirements of IEC 60947-1 and are available with rated cross-section of 2.5mm². The terminal with twin wire-end ferrules ZH 0.5 to ZH 1.5, the rated voltage is 690V. It features 28 to 12AWG wire connection cross section. · · · Colour: Beige/Yellow · · Conductor Size: 28-12 AWG · · Height: 32.5mm · · Material: Polyamide 66 · · Width: 5mm · · Weight: 6g · · Depth: 43.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 215560000 Category: Brand: Product Code: 2500013483

Description

Technical Specifications  Technical Specifications Feed-through terminal block Mounting method Direct mounting Material insulation body Thermoplastic Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 500 V Rated current In 24 A Number of clamp positions per level 2 Number of levels 1 Operating temperature -50 – 100 °C Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ No Closing plate required Yes Internally connected stages No · Technical Data Sheet – Click to Download
