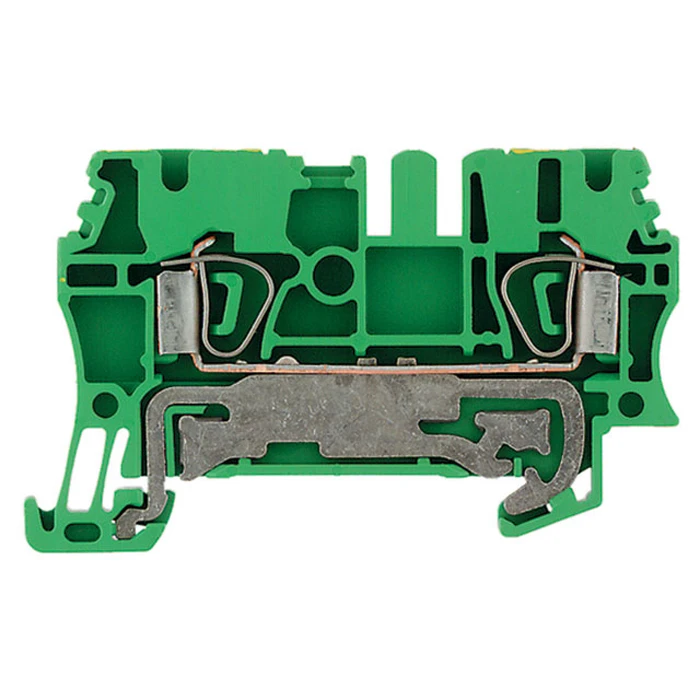

Weidmuller Terminal 30-12AWG Wemid 11g 5.1×38.5x63mm Green/yellow
£4.49 Incl. VAT
Weidmuller 1608640000 green/yellow TS 35 snap-on mounting PE terminal is made of Wemid body. The ZPE 2.5 PE terminal features 30 to 12AWG wire connection cross section, 8kV rated impulse withstand voltage to adjacent terminal and 800V rated voltage to adjoining terminal. · · · Colour: Green/yellow · · Conductor Size: 30-12 AWG · · Height: 63mm · · Material: Wemid · · Width: 5.1mm · · Weight: 11g · · Depth: 38.5mm
Description
Technical Specifications Technical Specifications Earth terminal block Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Type of electrical connection 1 Spring clamp connection Type of electrical connection 2 Spring clamp connection Number of levels 1 Colour Green/yellow Number of clamp positions per level 2 Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² PEN function possible No Closing plate required Yes · Technical Data Sheet – Click to Download
