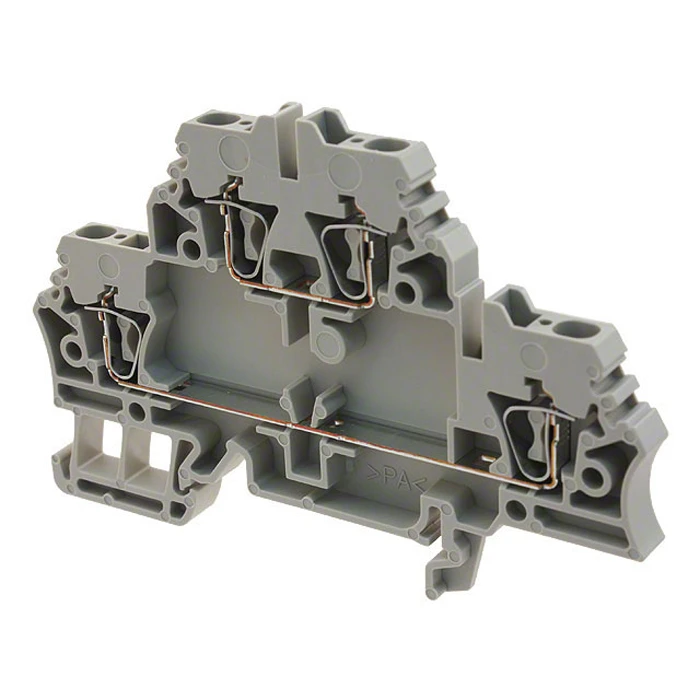

Weidmuller Terminal 30-12AWG Wemid 1g 5.1x53x79.5mm Beige
£2.96 Incl. VAT
Weidmuller 1674300000 beige TS 35 snap-on mounting modular feed through 2-tier terminal is made of Wemid body. The ZDK 2.5 terminal features less space, spacious labelling area, integrated test point, cross connection functionality within the Z series. 2.5mm² flexible wires with wire-end ferrules are crimped with the Weidmller PZ 6/5 crimping tool. It also features 30 to 12AWG wire connection cross section, 6kV rated impulse withstand voltage and 20A current at maximum wires. · · · Colour: Beige · · Conductor Size: 30-12 AWG · · Height: 79.5mm · · Material: Wemid · · Width: 5.1mm · · Weight: 1g · · Depth: 53mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Spring clamp connection Type of electrical connection 2 Spring clamp connection Rated current In 20 A Rated voltage 500 V Number of clamp positions per level 2 Operating temperature -50 – 120 °C Number of levels 2 Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Internally connected stages No Explosion-tested version ‘Ex e’ Yes Closing plate required Yes · Technical Data Sheet – Click to Download
