Weidmuller Terminal 4AWG Wemid 262g 27x90x91mm Dark Beige
£22.34 Incl. VAT

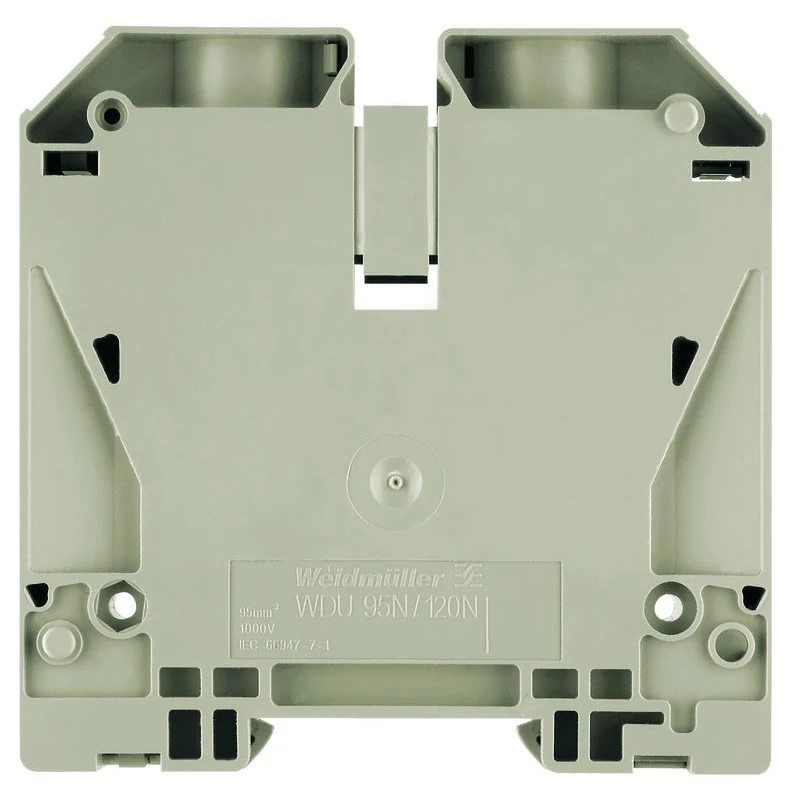

Weidmuller 1820550000 dark beige TS 35 snap-on direct mounting modular feed through terminal is made of Wemid body. The WDU 95N/120N terminal features M10 clamping screw, 4AWG to 250kcmil wire connection cross section, 12 to 20Nm tightening torque, 8kV rated impulse withstand voltage and 290A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 4 AWG · · Height: 91mm · · Material: Wemid · · Width: 27mm · · Weight: 262g · · Depth: 90mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated current In 269 A Rated voltage 1000 V Number of clamp positions per level 2 Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 16 – 120 mm² Connectable conductor cross section solid-core 16 – 16 mm² Connectable conductor cross section multi-wired 16 – 150 mm² Connectable conductor cross section fine-strand with cable end sleeve 16 – 95 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
