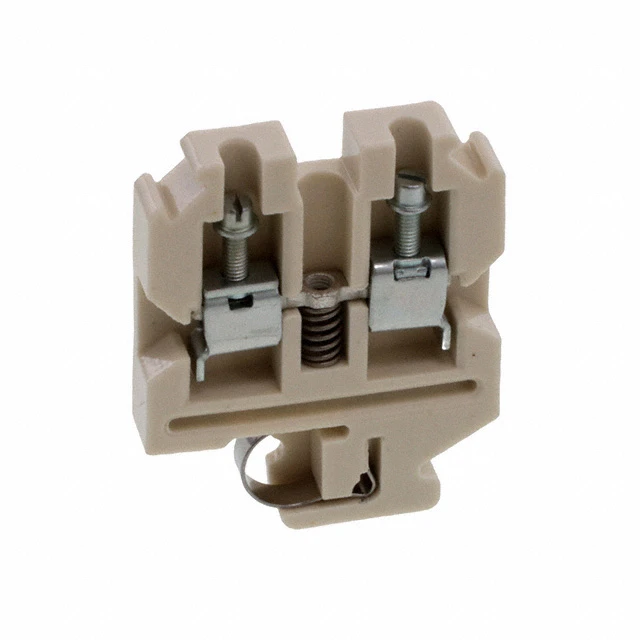

Weidmuller Terminal 4mm² Ceramic 32g 8x53x40mm White
Weidmuller Terminal 4mm² Ceramic 32g 8x53x40mm White
Weidmuller Terminal 4mm² Ceramic 32g 8x53x40mm White - Image 2

Weidmuller Terminal 4mm² Ceramic 32g 8x53x40mm White

Pack of 25

£149.04 Incl. VAT

Weidmuller 1598080000 white TS 32 snap-on mounting feed through terminal is made of ceramic body. The SAKK 4 KER/WS feed through terminal features M3 clamping screw, 22 to 10AWG wire connection cross section, 0.5 to 1Nm tightening torque, 8kV rated impulse withstand voltage and 41A current at maximum wires. Ceramic is an excellent material because it meets all requirements and it is heat resistant, water repellent, spark resistant and certified against leakage current. · · · Colour: White · · Conductor Size: 4mm² · · Height: 40mm · · Material: Ceramic · · Width: 8mm · · Weight: 32g · · Depth: 53mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1598080000 Category: Brand: Product Code: 2500199387

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 800 V Number of levels 1 Rated current In 32 A Operating temperature -60 – 250 °C Number of clamp positions per level 2 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Connectable conductor cross section multi-wired 4 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
