Weidmuller Terminal 4mm² Polyamide 66 17g 8x60x50mm Beige/Yellow
£6.47 Incl. VAT

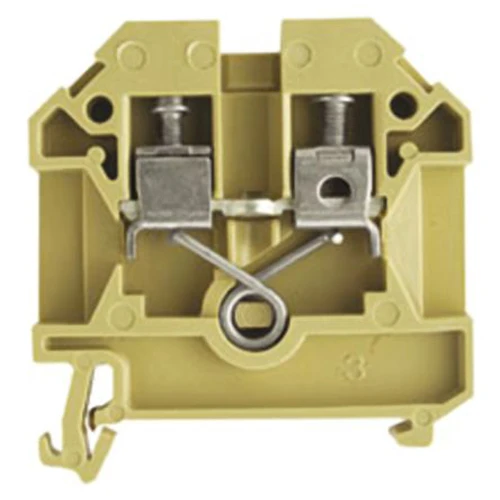

Weidmuller 9501160000 beige/yellow TS 35 snap-on direct mounting modular feed through terminal is made of PA 66 body. The RSF 3/35 terminal features M3 clamping screw, 0.5 to 1Nm tightening torque, 6kV rated impulse withstand voltage and 32A current at maximum wires. · · · Colour: Beige/Yellow · · Conductor Size: 4mm² · · Height: 50mm · · Material: Polyamide 66 · · Width: 8mm · · Weight: 17g · · Depth: 60mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Number of clamp positions per level 2 Rated current In 32 A Number of levels 1 Rated voltage 690 V Operating temperature -50 – 100 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Explosion-tested version ‘Ex e’ No Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
