Weidmuller Terminal 8AWG Wemid 463g 55x77.5x163mm Dark Beige
Weidmuller Terminal 8AWG Wemid 463g 55x77.5x163mm Dark Beige

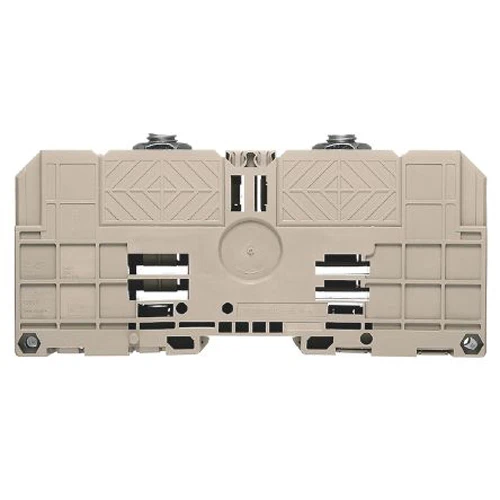

Weidmuller Terminal 8AWG Wemid 463g 55x77.5x163mm Dark Beige - Image 2

Weidmuller Terminal 8AWG Wemid 463g 55×77.5x163mm Dark Beige

£46.85 Incl. VAT

Weidmuller 1029600000 dark beige TS 35 snap-on mounting bolt-type twin-screw feed through terminal is made of Wemid body. The WFF 185/AH feed through terminal features 1000V DC rated voltage tested. It also features M12 stud size for spade connection, 8AWG to 500kcmil wire connection cross section, 14 to 31Nm tightening torque, 8kV rated impulse withstand voltage and 415A current at maximum wires. The bolt-type screw terminal offers secure connections for all power transmission applications. Bolt-type screw terminals with M12 thread can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. This bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. · · · Colour: Dark Beige · · Conductor Size: 8 AWG · · Height: 163mm · · Material: Wemid · · Width: 55mm · · Weight: 463g · · Depth: 77.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1029600000 Category: Brand: Product Code: 2500196441

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Bolt connection Type of electrical connection 2 Bolt connection Number of clamp positions per level 2 Rated voltage 1000 V Number of levels 1 Rated current In 353 A Operating temperature -50 – 120 °C Connectable conductor cross section multi-wired 10 – 185 mm² Connectable conductor cross section solid-core 25 – 185 mm² Connectable conductor cross section fine-strand without cable end sleeve 25 – 240 mm² Explosion-tested version ‘Ex e’ Yes Connectable conductor cross section fine-strand with cable end sleeve 25 – 240 mm² Closing plate required No Internally connected stages No · Technical Data Sheet – Click to Download
