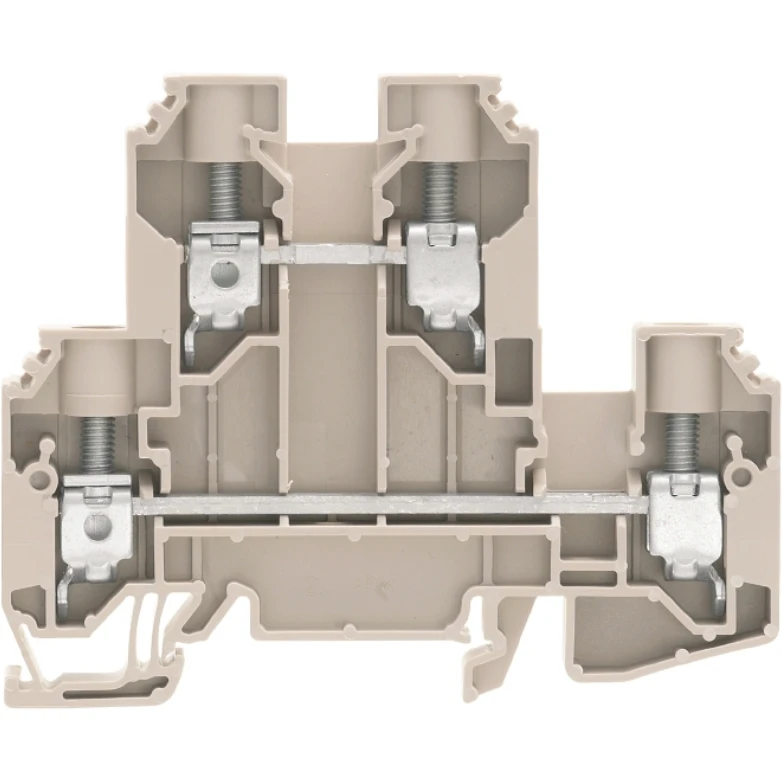

Weidmuller Terminal Double Tier WDK 10 10mm 57A 800V Beige Screw Connector

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Number of levels 2 Rated current In 57 A Operating temperature -50 – 120 °C Number of clamp positions per level 2 Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section multi-wired 1.5 – 16 mm² Explosion-tested version ‘Ex e’ No Closing plate required Yes Internally connected stages No · Technical Data Sheet – Click to Download
