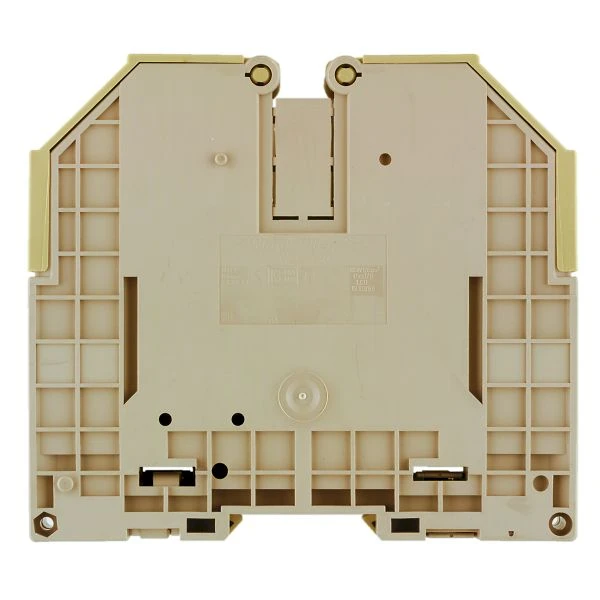

Weidmuller Terminal Feed Thr WDU 70/95 95mm 232A 1000V Beige Screw Connector
£28.79 Incl. VAT
Weidmuller 1024600000 dark beige TS 35 snap-on direct mounting modular feed through terminal is made of Wemid body. The WDK 70/95 modular feed through terminal features M8 clamping screw, 6 to 2/0AWG wire connection cross section, 6 to 12Nm tightening torque, 8kV rated impulse withstand voltage and 232A current at maximum wires. · · · Colour: Dark Beige, Material: Wemid · · Conductor Size: 6-2 / 0 AWG · · Current Rating: 232A, Voltage Rating: 690V · · Height: 132mm · · Length: 132mm · · Mounting Type: Snap-on · · Width: 27mm · · Weight: 340g · · Cross Sectional Area: 95mm² · · Depth: 107mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Mounting method Direct mounting Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 1000 V Rated current In 232 A Number of clamp positions per level 2 Operating temperature -50 – 120 °C Number of levels 1 Connectable conductor cross section solid-core 16 – 16 mm² Connectable conductor cross section multi-wired 16 – 120 mm² Connectable conductor cross section fine-strand with cable end sleeve 16 – 95 mm² Connectable conductor cross section fine-strand without cable end sleeve 16 – 95 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
