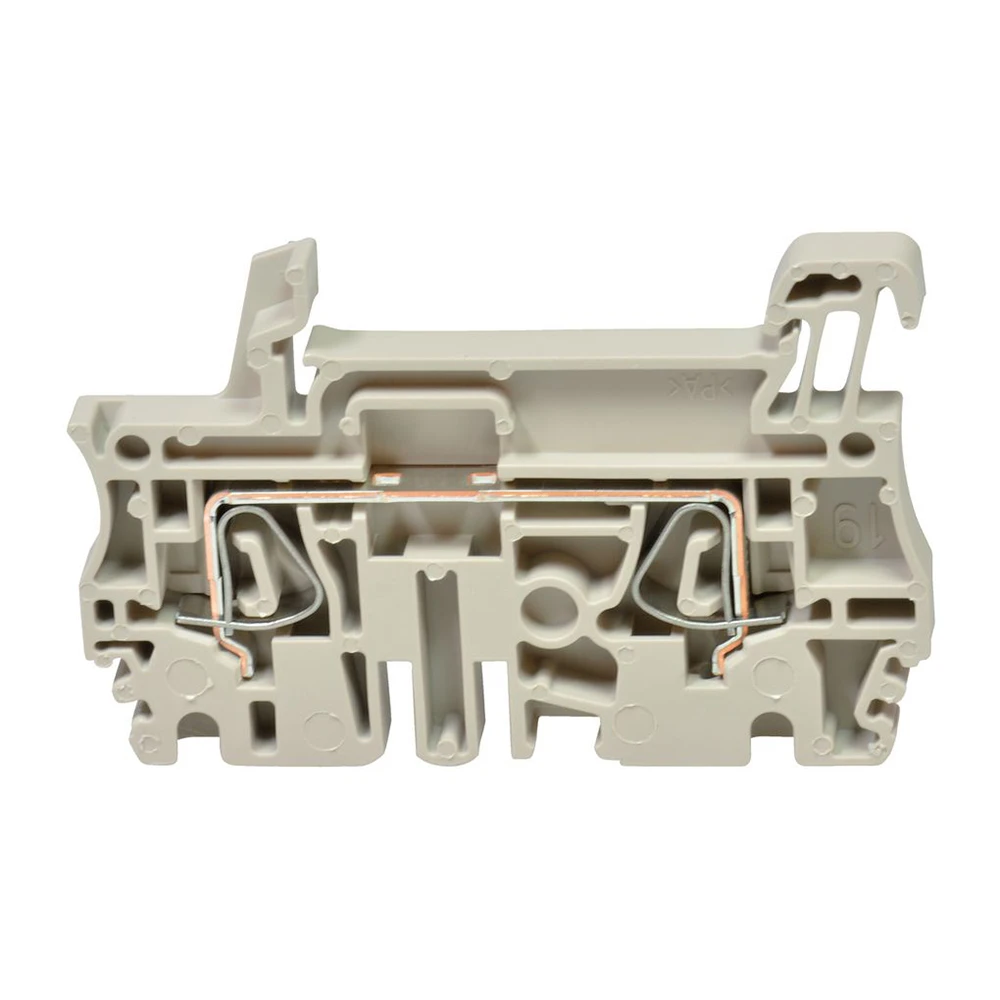

Weidmuller Terminal Feed Thr Zdu 2.5 2.5mm 24A 800V Tension Clamp [Pack=10]
£11.45 Incl. VAT
Weidmuller 1608510000 dark beige TS 35 snap-on mounting feed through terminal is made of Wemid body. The ZDU 2.5 feed through terminal features rated voltage is reduced to 400V when using the cross connector. It features 30 to 12AWG wire connection cross section, 8kV rated impulse withstand voltage and 31A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 30-12 AWG · · Height: 59.5mm · · Material: Wemid · · Width: 5.1mm · · Weight: 7g · · Depth: 38.5mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Spring clamp connection Type of electrical connection 2 Spring clamp connection Rated voltage 800 V Rated current In 24 A Number of levels 1 Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Closing plate required Yes Internally connected stages No · Technical Data Sheet – Click to Download
