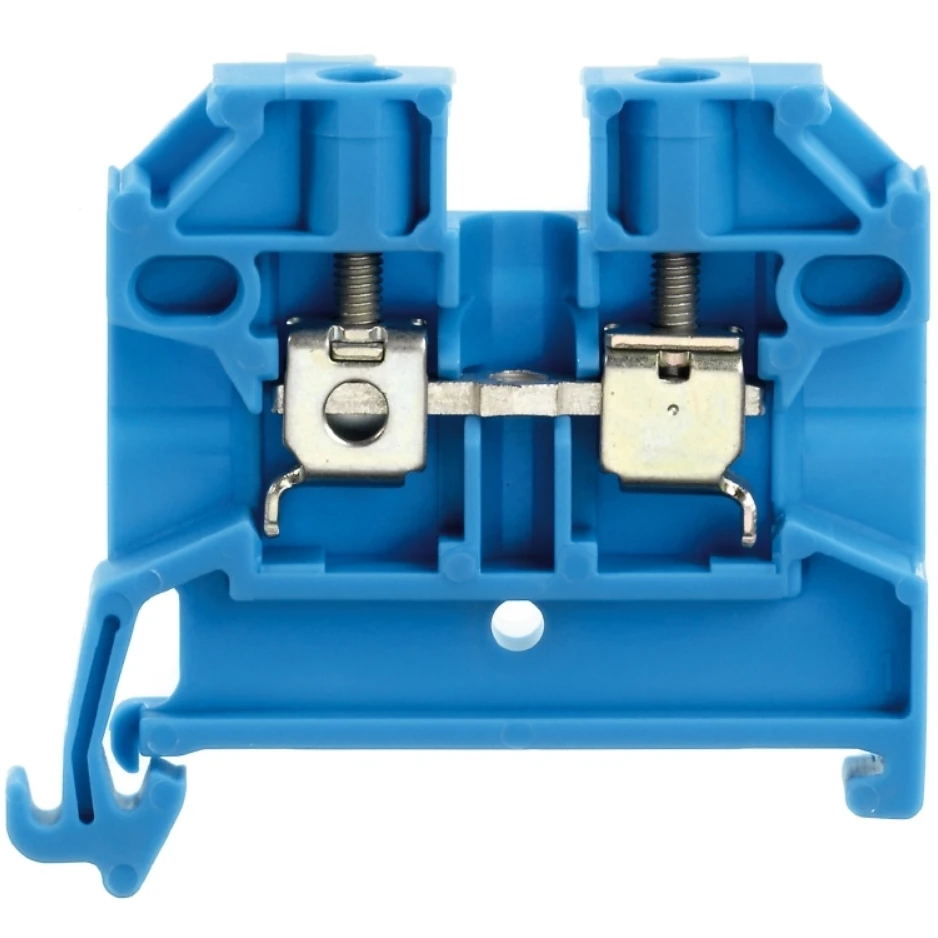

Weidmuller Terminal Sak 2.5/35 Screw Connection 44.5 x 6.1 x 40mm Blue
Weidmuller Terminal Sak 2.5/35 Screw Connection 44.5 x 6.1 x 40mm Blue
Weidmuller Terminal Sak 2.5/35 Screw Connection 44.5 x 6.1 x 40mm Blue - Image 2

Weidmuller Terminal Sak 2.5/35 Screw Connection 44.5 x 6.1 x 40mm Blue

£3.53 Incl. VAT

Weidmuller 0380480000 blue TS 35 snap-on mounting modular feed-through terminal is made of PA 66 body. The SAK 2.5/35 BL feed-through terminal satisfies the requirements of IEC 60947-1 and is available with rated cross-sections from 2.5mm². It is suitable for use with the screwable cross-connection. It features 26 to 10AWG wire cross section, M2.5 clamping screw, 8kV rated impulse withstand voltage and 41A current at maximum wires. · · · Colour: Blue · · Conductor Size: 26-10 AWG · · Connection Type: Screw · · Current Rating: 24A · · Material: Polyamide 66 · · Mounting Type: Snap-On · · Voltage Rating: 800V · · Weight: 7g · · CE: yes · · Dimensions: 6.1x40x44.5mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 380480000 Category: Brand: Product Code: 2500014190

Description

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of levels 1 Number of clamp positions per level 2 Rated current In 24 A Operating temperature -50 – 100 °C Rated voltage 800 V Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
