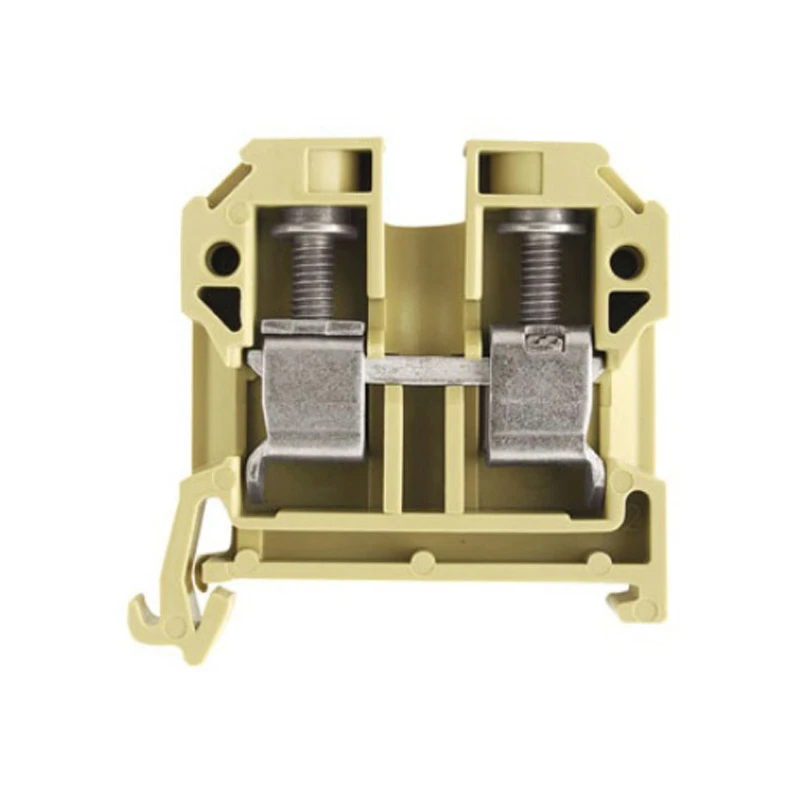

Weidmuller Terminal Sak10/35 Screw Connection 45 x 10 x 51.5mm Beige
Weidmuller Terminal Sak10/35 Screw Connection 45 x 10 x 51.5mm Beige
Weidmuller Terminal Sak10/35 Screw Connection 45 x 10 x 51.5mm Beige - Image 2
Weidmuller Terminal Sak10/35 Screw Connection 45 x 10 x 51.5mm Beige - Image 3

Weidmuller Terminal Sak10/35 Screw Connection 45 x 10 x 51.5mm Beige

£4.94 Incl. VAT

This Feed Through Terminal Block is made of polyamide 66 with Snap-On mounting. The Klippon connect provides a proven response to a range of different requirements. · · · High reliability · · Yoke connections make planning easer · · Optimises operational safety

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 443760000 Category: Brand: Product Code: 2500012392

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated current In 57 A Rated voltage 800 V Number of levels 1 Number of clamp positions per level 2 Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 10 mm² Operating temperature -50 – 100 °C Connectable conductor cross section solid-core 1.5 – 10 mm² Explosion-tested version ‘Ex e’ No Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Connectable conductor cross section multi-wired 1.5 – 16 mm² Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
