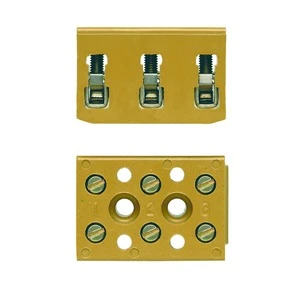

Weidmuller Terminal Strip KrG 14g 22x20x20mm Medium yellow
£1.85 Incl. VAT
Weidmuller 0624720000 medium yellow direct mounting multipin terminal strip is made of KrG body. The BK 6 CRN terminal rails can be screwed directly to the housing. A retightening of the clamping screw when setting the wire is not needed with this terminal. It features M3 clamping screw, 22 to 12AWG wire connection cross section, 0.5 to 0.6Nm tightening torque, 6kV rated impulse withstand voltage and 32A current at maximum wires. · · · Colour: Medium yellow · · Height: 20mm · · Material: KrG · · Width: 22mm · · Weight: 14g · · Depth: 20mm
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Material insulation body None Type of electrical connection 2 Plug-in connection Inflammability class of insulation material acc. with UL94 V0 Mounting method Direct mounting Type of electrical connection 1 Screw connection Number of clamp positions per pole 4 Number of poles 2 Rated current In 32 A Rated voltage 400 V Operating temperature -50 – 100 °C Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.2 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Transparent No Explosion-tested version ‘Ex e’ No Closing plate required No · Technical Data Sheet – Click to Download
