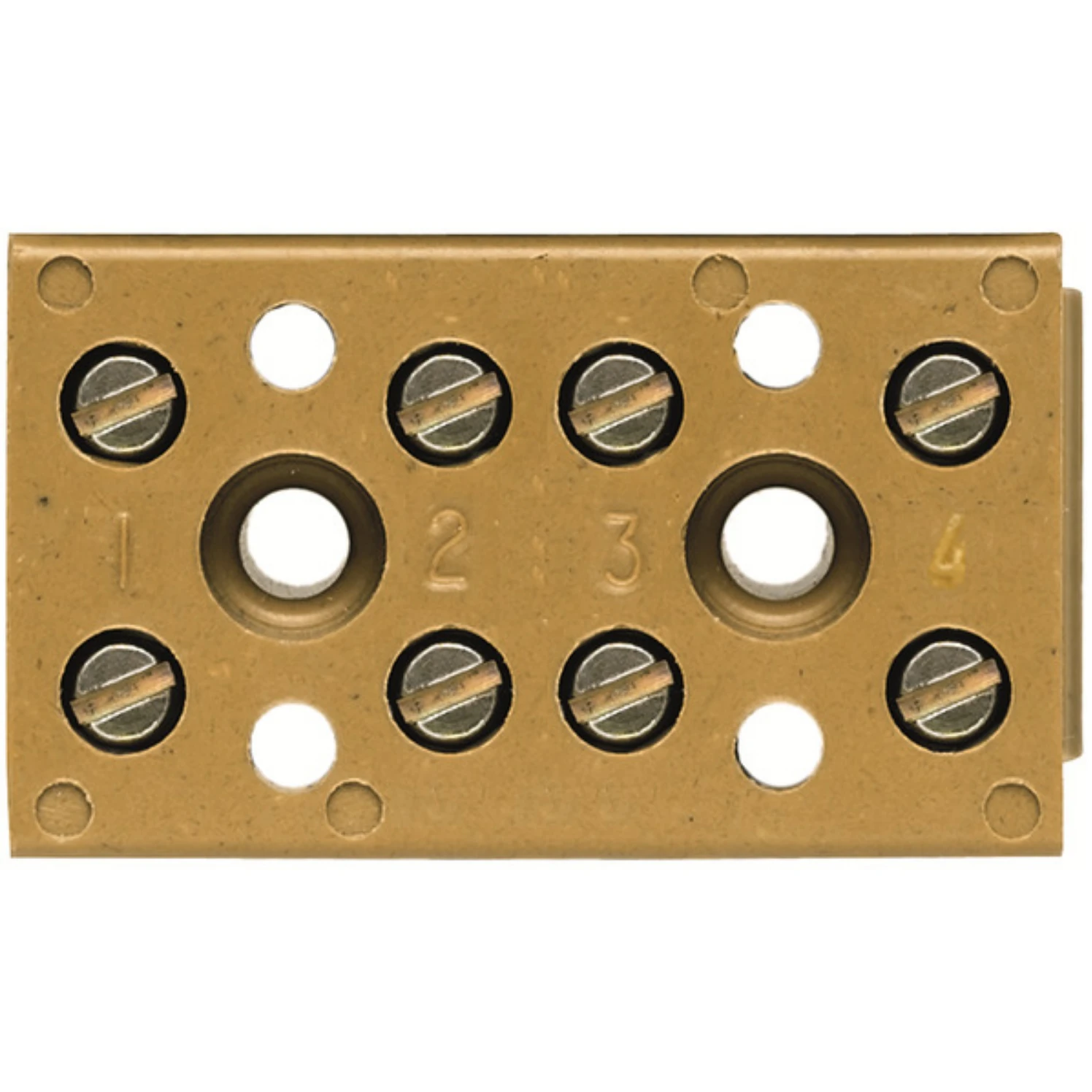

Weidmuller Terminal Strip KrG 27g 22x20x38mm Medium yellow
Weidmuller Terminal Strip KrG 27g 22x20x38mm Medium yellow
Weidmuller Terminal Strip KrG 27g 22x20x38mm Medium yellow - Image 2

Weidmuller Terminal Strip KrG 27g 22x20x38mm Medium yellow

£2.88 Incl. VAT

Weidmuller 0625120000 medium yellow direct mounting multipin terminal strip is made of KrG body. The BK 4 CRN terminal rails can be screwed directly to the housing. A retightening of the clamping screw when setting the wire is not needed with this terminal. It features M3 clamping screw, 22 to 12AWG wire connection cross section, 0.5 to 0.6Nm tightening torque, 6kV rated impulse withstand voltage and 32A current at maximum wires. · · · Colour: Medium yellow · · Height: 38mm · · Material: KrG · · Width: 22mm · · Weight: 27g · · Depth: 20mm

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 625120000 Category: Brand: Product Code: 2500012813

Description

Technical Specifications  Technical Specifications Single- and multi-pole terminal strip Material insulation body None Inflammability class of insulation material acc. with UL94 V0 Mounting method Direct mounting Type of electrical connection 2 Screw connection Number of poles 4 Type of electrical connection 1 Screw connection Rated current In 32 A Number of clamp positions per pole 8 Operating temperature -50 – 100 °C Rated voltage 400 V Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.2 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Transparent No · Technical Data Sheet – Click to Download
