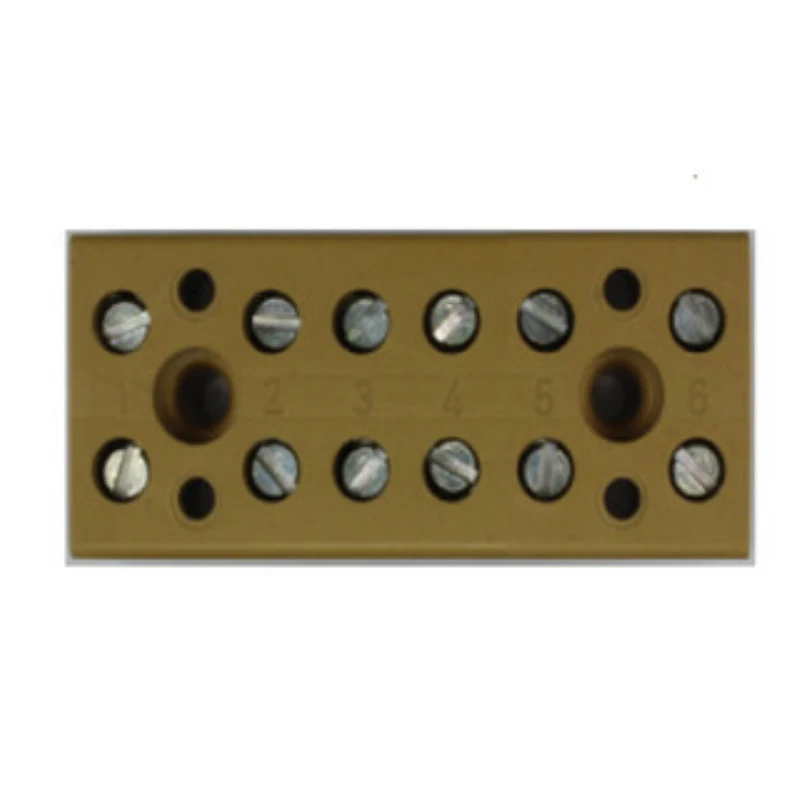

Weidmuller Terminal Strip KrG 4g 22x20x52mm Medium yellow
£4.45 Incl. VAT
Weidmuller 0625220000 medium yellow direct mounting multipin terminal strip is made of KrG body. The BK 6 CRN terminal rails can be screwed directly to the housing. A retightening of the clamping screw when setting the wire is not needed with this terminal. It features M3 clamping screw, 22 to 12AWG wire connection cross section, 0.5 to 0.6Nm tightening torque, 6kV rated impulse withstand voltage and 32A current at maximum wires. · · · Colour: Medium yellow · · Connection Type: Screw · · Height: 52mm · · Length: 52mm · · Material: KrG · · Mounting Type: Direct · · Width: 22mm · · Weight: 4g · · Depth: 20mm · · CE: yes
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Material insulation body None Inflammability class of insulation material acc. with UL94 V0 Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Number of poles 6 Number of clamp positions per pole 12 Rated voltage 400 V Connectable conductor cross section fine-strand without cable end sleeve 0.2 – 4 mm² Operating temperature -50 – 100 °C Rated current In 32 A Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Transparent No · Technical Data Sheet – Click to Download
