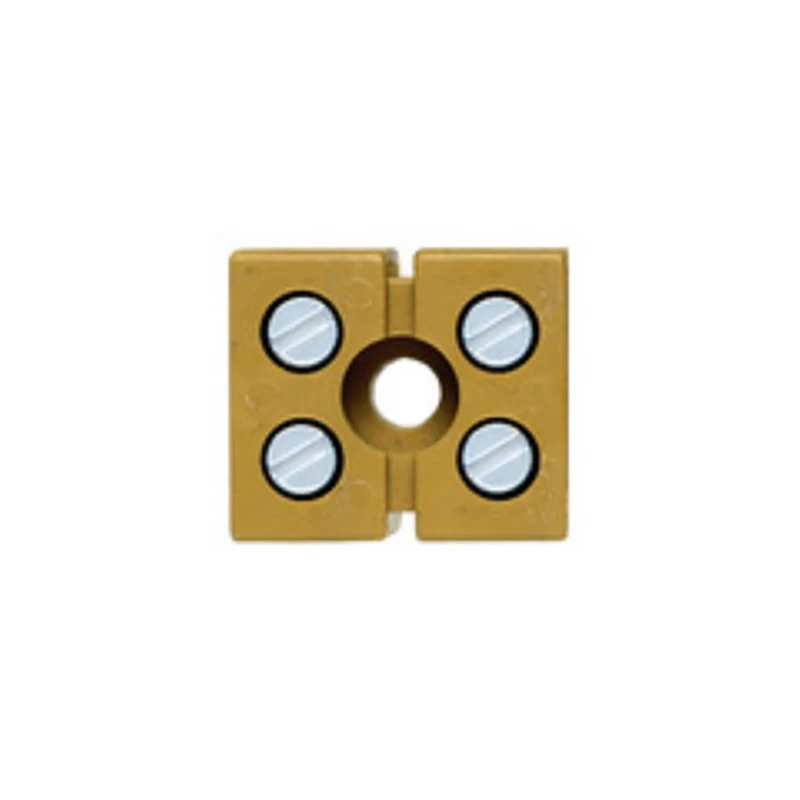

Weidmuller Terminal Strip KrG 7g 15×16.1×17.4mm Medium yellow
£1.56 Incl. VAT
Weidmuller 0273820000 medium yellow direct mounting multipin terminal strip is made of KrG body. The MK 3/2 terminal strip is suitable for use with the mounting rails. A retightening of the clamping screw when setting the wire is not needed with this terminals. It features 22 to 12AWG wire connection cross section, M2.5 clamping screw and 6kV rated impulse withstand voltage. · · · Colour: Medium yellow · · Height: 17.4mm · · Material: KrG · · Width: 15mm · · Weight: 7g · · Depth: 16.1mm
Description
Technical Specifications Technical Specifications Single- and multi-pole terminal strip Inflammability class of insulation material acc. with UL94 5V Material insulation body None Type of electrical connection 2 Screw connection Mounting method Direct mounting Type of electrical connection 1 Screw connection Rated voltage 400 V Number of clamp positions per pole 4 Number of poles 2 Operating temperature -50 – 100 °C Rated current In 24 A Connectable conductor cross section fine-strand without cable end sleeve 0.2 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Explosion-tested version ‘Ex e’ No Closing plate required No Transparent No · Technical Data Sheet – Click to Download
