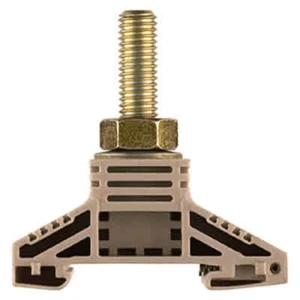

Weidmuller Terminal Stud Wf 10 120mm 1000V Beige Threaded Connection

Weidmuller 1780870000 dark beige TS 35 snap-on mounting bolt-type screw feed through terminal is made of Wemid body. The WF 10 bolt-type screw terminal offers secure connections for all power transmission applications. The conductors are attached to the terminal using crimped cable lugs and each connection secured by tightening the hexagonal nut. Bolt-type screw terminal with threads of M10 can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. The bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. 1000V DC rated voltage tested. 1000V UL and CSA for use groups B and C can be used with isolating DIN rails and when using WTW-type partitions. It features M10 stud size for spade connection, 10AWG to 250kcmil wire cross section, 8kV rated impulse withstand voltage, 12kV impulse voltage with epoxy resin partition plate, 269A current at maximum wires and 2300V voltage with epoxy resin partition plate. · · · Colour: Dark Beige · · Conductor Size: 10 AWG · · Height: 67mm · · Material: Wemid · · Width: 33.8mm · · Weight: 85g · · Depth: 72.5mm
