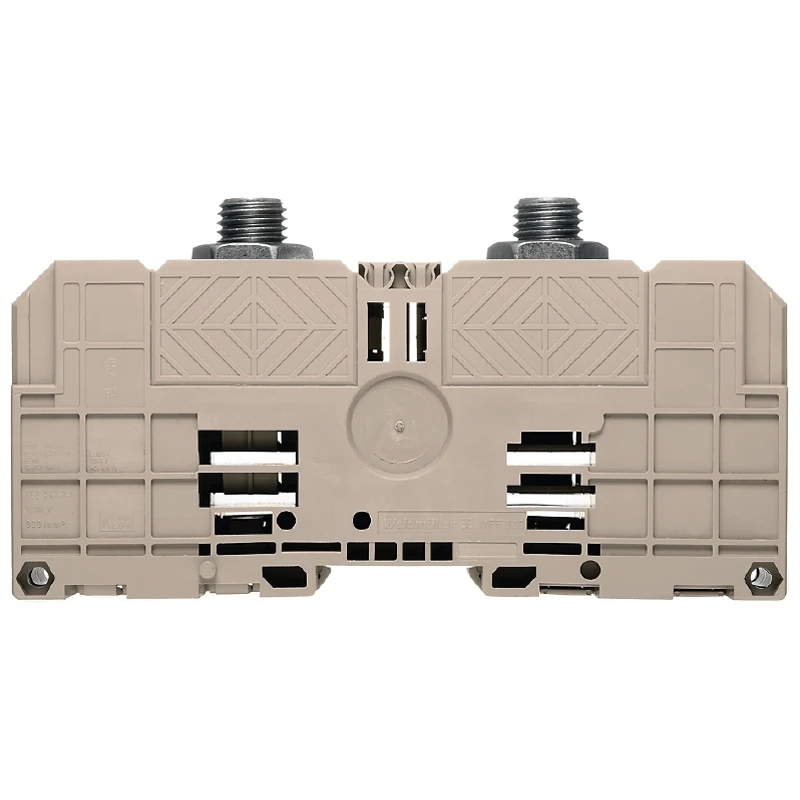

Weidmuller Terminal Stud Wff 300 Threaded Connect 300mm² 520A 1000V
£42.42 Incl. VAT
Weidmuller 1028700000 dark beige TS 35 snap-on mounting bolt-type twin-screw feed through terminal is made of Wemid body. The WFF 300 feed through terminal features 1000V DC rated voltage tested. 1000V UL and CSA for use groups B and C can be used with isolating DIN rails and when using WTW-type partitions. It also features M16 stud size for spade connection, 6AWG to 600kcmil wire connection cross section, 25 to 60Nm tightening torque, 8kV rated impulse withstand voltage and 520A current at maximum wires. The bolt-type screw terminal offers secure connections for all power transmission applications. Bolt-type screw terminals with M16 thread can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. This bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. · · · Colour: Dark Beige · · Conductor Size: 300mm² · · Height: 163mm · · Material: Wemid · · Width: 55mm · · Weight: 552g · · Depth: 85.5mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Beige Type of electrical connection 2 Bolt connection Type of electrical connection 1 Bolt connection Rated current In 520 A Rated voltage 1000 V Number of levels 1 Number of clamp positions per level 2 Connectable conductor cross section multi-wired 10 – 300 mm² Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 25 – 300 mm² Connectable conductor cross section fine-strand without cable end sleeve 25 – 240 mm² Connectable conductor cross section solid-core 25 – 300 mm² Closing plate required No Explosion-tested version ‘Ex e’ Yes Internally connected stages No · Technical Data Sheet – Click to Download
