Weidmuller Terminal Stud Wff 35 Threaded Connect 35mm 125A 1000V
Awaiting product image

Weidmuller Terminal Stud Wff 35 Threaded Connect 35mm 125A 1000V

£14.63 Incl. VAT

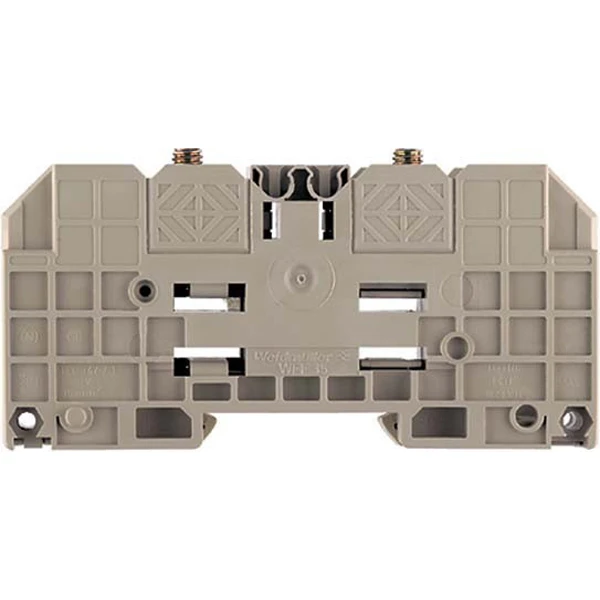

Weidmuller 1028300000 dark beige TS 35 snap-on mounting bolt-type twin-screw feed through terminal is made of Wemid body. The WFF 35 feed through terminal features 1000V DC rated voltage tested. 1000V UL and CSA for use groups B and C can be used with isolating DIN rails and when using WTW-type partitions. It also features M6 stud size for spade connection, 14 to 2AWG wire connection cross section, 3 to 6Nm tightening torque, 8kV rated impulse withstand voltage and 150A current at maximum wires. The bolt-type screw terminal offers secure connections for all power transmission applications. Bolt-type screw terminals with M6 thread can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. This bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. · · · Colour: Dark Beige · · Conductor Size: 14-2 AWG · · Height: 107mm · · Material: Wemid · · Width: 27mm · · Weight: 90g · · Depth: 51mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1028300000 Categories: , , Brand: Product Code: 2500187026

Description

Technical Specifications  Technical Specifications Feed-through terminal block Connection position Inclined Material insulation body Thermoplastic Colour Beige Inflammability class of insulation material acc. with UL94 V0 Number of clamp positions per level 2 Height at lowest possible mounting height 51 mm Width/grid dimension 27 mm Rated current In 125 A Length 107 mm Rated voltage 1000 V Type of electrical connection 2 Bolt connection Type of electrical connection 1 Bolt connection Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 2.5 – 50 mm² Connectable conductor cross section solid-core 2.5 – 50 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Connectable conductor cross section fine-strand with cable end sleeve 2.5 – 50. mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
