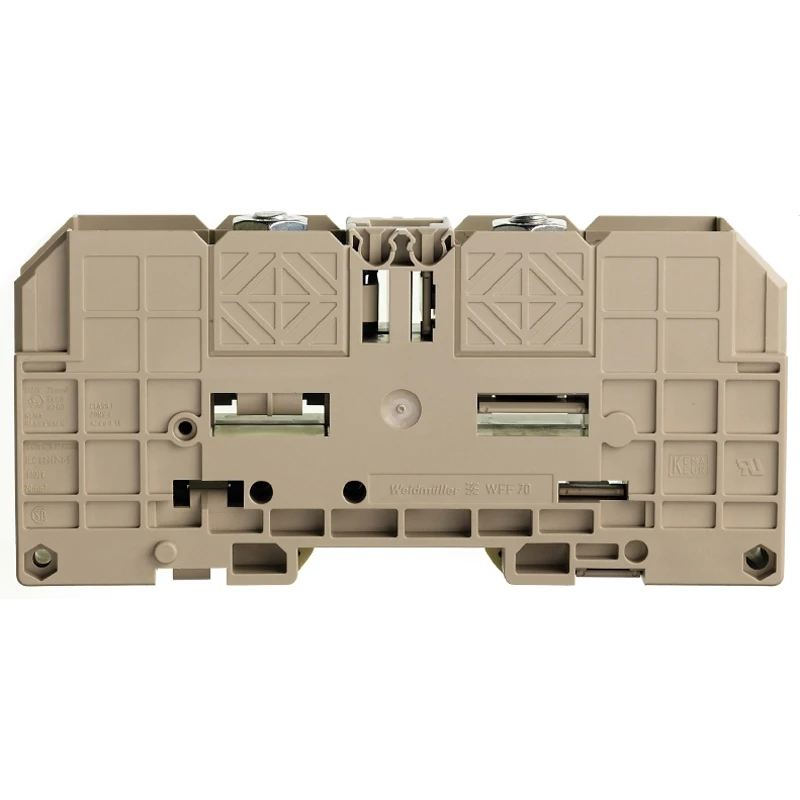

Weidmuller Terminal Stud Wff 70/Ah Threaded Connect 70mm 192A 1000V
£25.13 Incl. VAT
Weidmuller 1029400000 dark beige TS 35 snap-on direct mounting bolt-type twin-screw feed through terminal is made of Wemid body. The WFF 70/AH feed through terminal features 1000V DC rated voltage tested. 1000V UL and CSA for use groups B and C can be used with isolating DIN rails and when using WTW-type partitions. It also features M8 stud size for spade connection, 14 to 00AWG wire connection cross section, 6 to 12Nm tightening torque, 8kV rated impulse withstand voltage and 232A current at maximum wires. The bolt-type screw terminal offers secure connections for all power transmission applications. Bolt-type screw terminals with M8 thread can be used depending on the conductor cross-section. A low voltage drop and the use of a self-extinguishing material with a flammability rating guarantees maximum safety. This bolt-type screw terminal has been tested according to international railway standards and comply with the requirements of those standards. · · · Colour: Dark Beige · · Conductor Size: 14-00 AWG · · Height: 132mm · · Material: Wemid · · Width: 31.8mm · · Weight: 182g · · Depth: 61mm
Description
Technical Specifications Technical Specifications Feed-through terminal block Type of electrical connection 2 Bolt connection Material insulation body Thermoplastic Colour Beige Type of electrical connection 1 Bolt connection Rated current In 192 A Number of clamp positions per level 2 Number of levels 1 Rated voltage 1000 V Connectable conductor cross section multi-wired 10 – 70 mm² Operating temperature -50 – 120 °C Connectable conductor cross section solid-core 2.5 – 70 mm² Connectable conductor cross section fine-strand without cable end sleeve 2.5 – 95 mm² Connectable conductor cross section fine-strand with cable end sleeve 2.5 – 95 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
